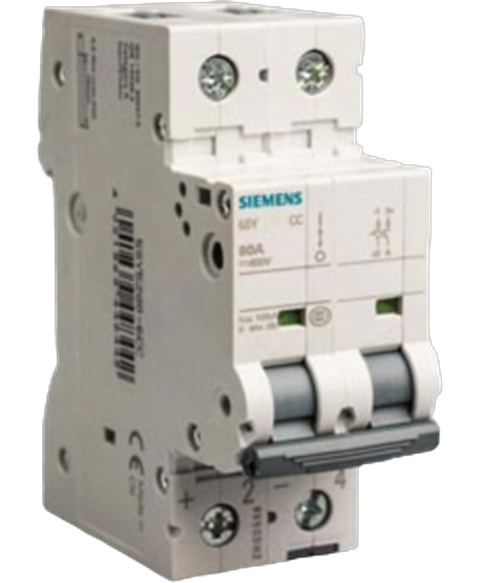

Siemens 5SY52167CC
This Siemens 5SY52167CC is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL27091030085.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| design of the product | Machine manufacture / industry |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 3 |
| type of voltage of the operating voltage | DC |
| at DC rated value | 440 V |
| — at 40 °C rated value | 15.2 A |
| — at 50 °C rated value | 14.37 A |
| — at 55 °C rated value | 13.92 A |
| operational current at AC rated value | 16 A |
| operating voltage at DC rated value maximum | 500 V |
| protection class IP | IP20, with connected conductors |
| at DC according to IEC 60947-2 rated value | 10 kA |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 2 W |
| suitability for operation | Infrastructure / Industry / Mobility |
| product feature touch protection | Yes |
| combined terminal top | Yes |
| combined terminal bottom | Yes |
| neutral conductor switching | No |
| product feature properties for main switches in accordance with EN 60204-1 | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
| minimum | 0.75 mm²22 lbf·in2.5 N·m-25 °C-40 °C |
| maximum | 35 mm²25 mm²31 lbf·in3.5 N·m55 °C75 °C |
| position of power supply cord | Consider polarity |
| height | 90 mm |
| width | 36 mm |
| depth | 76 mm |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 0.32 kg |
| influence of the surrounding temperature | max. 95% RH up to 55°C |
| vibration resistance according to IEC 60068-2-6 | ±1mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz and 60 m/s² at 35 Hz (4 sec) |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
