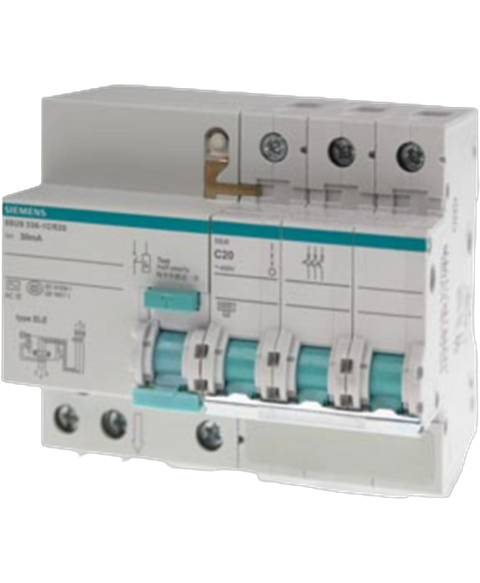

Siemens 5SU93361CR63
This Siemens 5SU93361CR63 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL27091017440.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | RCD-operated circuit breaker |
| design of the product | Instantaneous |
| number of poles | 3 |
| number of poles with protection | 3 |
| design of pole | 3P |
| tripping characteristic class | C |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 2 |
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) rated value | 440 V |
| surge voltage resistance rated value | 4 000 V |
| surge current resistance at (8/20) µs | 1 kA |
| tripping fault current rated value | 30 mA |
| — at 30 °C rated value | 63 A |
| — at 40 °C rated value | 58.6 A |
| — at 45 °C rated value | 56.1 A |
| — at 50 °C rated value | 54.8 A |
| — at 55 °C rated value | 53.6 A |
| operational current at AC rated value | 63 A |
| residual current type | AC |
| at AC rated value | 400 V |
| for testing equipment minimum | 125 V |
| operating frequency | 50/60 Hz |
| supply voltage frequency rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| according to EN 60898 rated value | 6 kA |
| according to IEC 60947-2 rated value | 6 kA |
| short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value | 6 kA |
| rated residual switching capacity (IΔm) according to IEC 61009-1 | 3 kA |
| energy limitation class | 3 |
| for rated value of the current at AC in hot operating state per pole | 0.75 W |
| maximum | 2.3 W35 mm²25 mm²3 N·m45 °C75 °C |
| product feature touch protection | Yes |
| product component neutral conductor switching | No |
| product feature halogen-free | Yes |
| product feature silicon-free | Yes |
| product function | voltage dependent RCD function |
| minimum | 0.75 mm²2.5 N·m-25 °C-40 °C |
| position of power supply cord | Either top or bottom |
| height | 90 mm |
| width | 108 mm |
| depth | 77 mm |
| installation depth | 70 mm |
| number of modular width units | 6 |
| mounting position | any |
| Net Weight | 450 g |
| weight with packaging | 470 g |
| influence of the surrounding temperature | Max. 95% humidity |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
