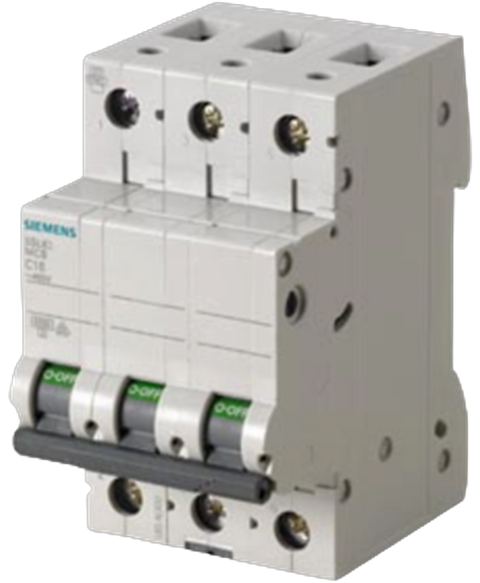

Siemens 5SL63037CC
This Siemens 5SL63037CC is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL27091004939.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 3 |
| design of pole | 3P |
| tripping characteristic class | C |
| overvoltage category | 3 |
| degree of pollution | 2 |
| type of voltage of the operating voltage | AC |
| type of voltage | Use only in alternating current or direct current circuits. Mixed use is not permitted. |
| with multi-phase operation at AC rated value | 440 V |
| — at 30 °C rated value | 3 A |
| — at 40 °C rated value | 2.83 A |
| — at 50 °C rated value | 2.65 A |
| — at 55 °C rated value | 2.55 A |
| operational current at AC rated value | 3 A |
| supply voltage at AC | 400 V |
| value range of the supply voltage frequency | 50/60 Hz |
| with multi-phase operation at AC maximum | 440 V |
| at DC rated value maximum | 62.5 V |
| protection class IP | IP20, with connected conductors |
| according to EN 60898 rated value | 6 kA |
| energy limitation class | 3 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1.3 W |
| suitability for operation | Residential buildings/infrastructure |
| product feature touch protection | Yes |
| product component neutral conductor switching | No |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
| minimum | 0.75 mm²2.5 N·m-25 °C-40 °C |
| maximum | 25 mm²3 N·m45 °C75 °C |
| height | 90 mm |
| width | 54 mm |
| depth | 76 mm |
| installation depth | 70 mm |
| number of modular width units | 3 |
| mounting position | any |
| Net Weight | 0.465 kg |
| vibration resistance according to IEC 60068-2-6 | 50 m/s² at 25 to 150 Hz |
