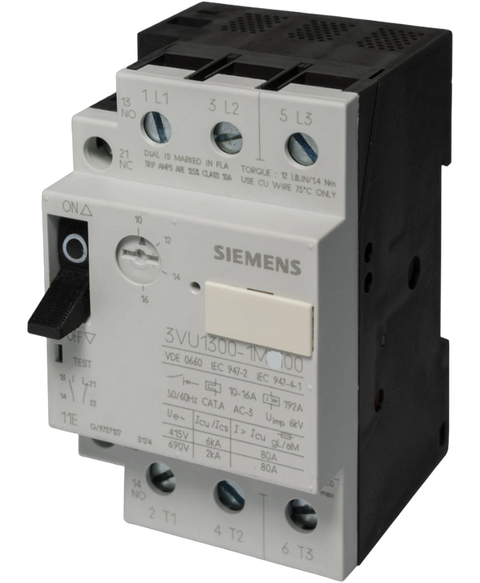

Siemens 3VU1300-1MP00
The Siemens 3VU1300-1MP00 is a motor protection circuit breaker suitable for three-phase applications. It has a maximum current rating of 25 Amps and features auxiliary contacts for additional functionality. This device operates effectively at temperatures ranging from -20 to 55 °C.
This Siemens 3VU1300-1MP00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers range and is referenced internally as PartLogic SKU PL26801460491.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Motor Protection Circuit Breaker |
| Product Line | 3VU |
| Part Number | 3VU1300-1MP00 |
| EAN | 4011209067967 |
| Weight | 0.75 lbs (0.34 kg) |
| Poles | 3 |
| Maximum Current Rating | 25 Amps |
| Auxiliary Contacts | 1 x NO, 1 x NC |
| Terminal | Screw |
| Operating Temperature | -20 to 55 °C |
| Storage Temperature | -50 to 80 °C |
| Insulation Voltage | 750 Volts |
| Operating Cycles | Up to 100,000 |
| Operating Cycles per Hour | 25 |
| Temperature Compensation | Yes |
| Phase Failure Sensitivity | Yes |
| Mounting | DIN rail |
| Brand | Siemens |
