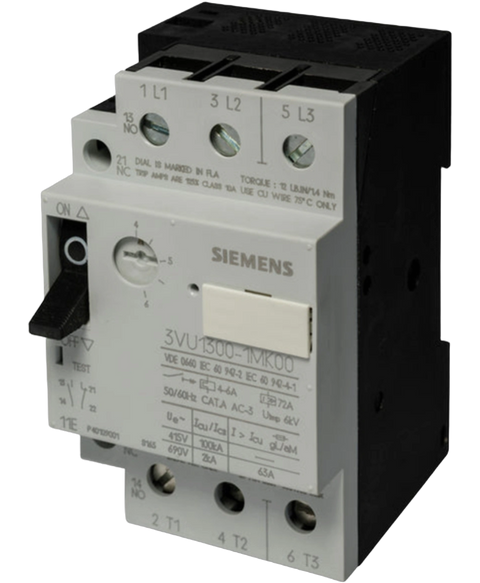

Siemens 3VU1300-1MK00
The Siemens 3VU1300-1MK00 is a motor protection circuit breaker designed to guard motors against overload and short circuits. Its rated current range varies from 4 to 6 Amps, with a short circuit release setting at 72 Amps for immediate protection.
This Siemens 3VU1300-1MK00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers range and is referenced internally as PartLogic SKU PL26805602521.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Motor Protection Circuit Breaker (MPCB) |
| Product Line | 3VU |
| Part Number | 3VU1300-1MK00 |
| EAN | 4011209067929 |
| Weight | 0.56 lbs (0.26 kg) |
| Rated Current Range | 4 to 6 A (adjustable overload release) |
| Short Circuit Release Setting | 72 A (instantaneous trip for short circuit protection) |
| Number of Poles | 3-pole |
| Auxiliary Contacts | 1 NO (Normally Open) + 1 NC (Normally Closed) |
| Rated Insulation Voltage | 690 V AC |
| Rated Operational Voltage (Ue) | 690 V AC / 250 V DC |
| Rated Frequency | 50/60 Hz |
| Rated Short Circuit Breaking Capacity (Icu) | 10 kA at 415 V AC (without current limiter) |
| Current Limiter Compatibility | Can be used with a current limiter to increase breaking capacity to 50 kA |
| Trip-Free Mechanism | Yes (cannot be overridden by the toggle switch position) |
| Ambient Temperature Range | -25°C to +55°C (with full rated current up to 55°C) |
| Mounting | DIN rail mounting |
| Terminal Type | Screw terminals |
| Mechanical Life | 20,000 operations |
| Brand | Siemens |
