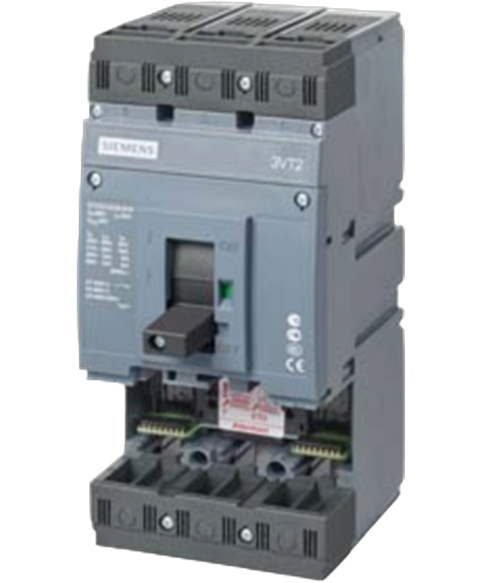

Siemens 3VT27252AA360AA0
circuit breaker 3VT2 standard breaking capacity Icu=36kA, 415V AC 3-pole; circuit breaker w,o Electronic Trip Unit without auxiliary release without auxiliary,alarm switch
This Siemens 3VT27252AA360AA0 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL27090906124.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | 3VT1_5 molded case circuit breakers |
| design of the actuating element | toggle handle |
| type of the driving mechanism motor drive | No |
| number of poles | 3 |
| size of the circuit-breaker | 3VT2 |
| mechanical service life (operating cycles) typical | 30 000 |
| electrical endurance (operating cycles) typical | 3 000 |
| utilization category | A |
| performance class for circuit breaker | N |
| operating frequency maximum | 120 1/h |
| surge voltage resistance rated value | 8 kV |
| protection class IP | IP40 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 6 W |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| operational current rated value | 250 A |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| suitability for use | Contact unit without release |
| suitability for use disconnecting means | Yes |
| trip indicator | No |
| auxiliary switch | No |
| voltage trigger | No |
| undervoltage release | No |
| undervoltage release with leading contact | No |
| product extension optional motor drive | Yes |
| grounding protection | No |
| for neutral conductors short-circuit and overload proof | No |
| phase failure detection | No |
| overload protection | No |
| at 240 V rated value | 30 kA60 kA |
| at 415 V rated value | 18 kA36 kA |
| at 500 V rated value | 8 kA16 kA |
| at 690 V rated value | 5 kA10 kA |
| arrangement of electrical connectors for main current circuit | front side |
| type of electrical connection for main current circuit | screw-type terminals |
| height | 225 mm |
| width | 105 mm |
| depth | 117 mm |
| fastening method | fixed mounting |
| mounting position | with vertical mounting surface +/-180° rotatable, with vertical mounting surface +/- 30° tiltable to the front and back |
| Net Weight | 3.32 kg |
| minimum | -40 °C |
| maximum | 70 °C |
| reference code according to EN 61346-2 | Q |
| reference code according to IEC 81346-2 | Q |
