Siemens 3UG56161CR20
Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3UG56161CR20

SKU: PL27090844487
MPN: 3UG56161CR20

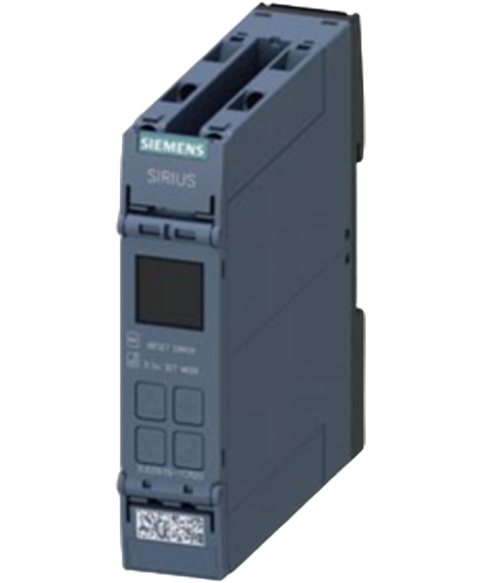

digitally adjustable monitoring relay phase failure, phase sequence, asymmetry, frequency, over- and under-voltage monitoring 3x 90-690 V AC, 15-70 Hz 2 changeover contacts screw terminal

This Siemens 3UG56161CR20 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Monitoring relays range and is referenced internally as PartLogic SKU PL27090844487.

Brand New - 12 Months Warranty
$310.97 (inc. GST)
In Stock

Datasheet

product brand name SIRIUS
product designation Network monitoring relay with digital setting
design of the product monitoring of phase sequence, phase failure, phase asymmetry, N-conductor (adjustable), frequency, undervoltage and overvoltage
product type designation 3UG5
product function line monitoring
display version LED No
design of the display LCD
power loss [W] maximum 2 W
power loss [V∙A] maximum 5.1 VA
with degree of pollution 2 rated value 690 V
with degree of pollution 3 rated value 690 V
degree of pollution 3
for monitoring AC
of the operating voltage for actuation AC/DC
surge voltage resistance rated value 6 kV
shock resistance according to IEC 60068-2-27 sinusoidal half-wave 15g / 11 ms
vibration resistance according to IEC 60068-2-6 10 ... 55 Hz: 0.35 mm
switching behavior monostable
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current of the switching element with contacts maximum 5 A
adjustable OFF-delay time 0.1 ... 30 s
reference code according to IEC 81346-2 K
relative repeat accuracy 0.4 %
Substance Prohibitance (Date) 06/01/2023
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 176 g
undervoltage detection Yes
overvoltage detection Yes
phase sequence recognition Yes
phase failure detection Yes
asymmetry detection Yes
overvoltage detection 3 phase Yes
undervoltage detection 3 phases Yes
voltage window recognition 3 phase Yes
adjustable open/closed-circuit current principle Yes
auto-RESET Yes
neutral conductor monitoring adjustable Yes
suitability for use safety-related circuits No
type of voltage of the control supply voltage AC
at 50 Hz 200 ... 690 V120 ... 400 V
at 60 Hz 200 ... 690 V120 ... 400 V
initial value 0.85
full-scale value 1.1
supply voltage frequency rated value 70 ... 15 Hz
design of the interface bluetooth No
measurable voltage 1 at AC 160 ... 760 V
measurable voltage 2 at AC 90 ... 440 V
adjustable operating delay time initial value 0 s
when starting 0.1 ... 999.9 s
with lower or upper limit violation 0.1 ... 30 s
buffering time in the event of power failure minimum 20 ms
response time maximum 500 ms
accuracy of digital display +/-1 digit
relative temperature-related measurement deviation 1 %
relative metering precision 3 %
temperature drift per °C 0.001 %/°C
for short-circuit protection of the NO contacts of the relay outputs required gL/gG: 6 A or MCB type C: 1 A
for short circuit protection of the NC contacts of the relay outputs required gL/gG: 6 A or MCB type C: 1 A
protocol is supported IO-Link protocol No
type of voltage supply via input/output link master No
material of switching contacts AgSnO2
number of NC contacts delayed switching 0
number of NO contacts delayed switching 0
for auxiliary contacts 2
delayed switching 2
operating frequency with 3RT2 contactor maximum 5 000 1/h
contact reliability of auxiliary contacts one incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to UL R300 / B300
number of poles for main current circuit 4
at 250 V at 50/60 Hz 3 A
at 24 V 1 A
at 110 V 0.2 A
at 125 V 0.2 A
at 230 V 0.1 A
at 250 V 0.1 A
operational current at 17 V minimum 5 mA
continuous current of the DIAZED fuse link of the output relay 6 A
EMC emitted interference according to IEC 60947-1 class A
due to burst according to IEC 61000-4-4 2 kV (power ports), 2 kV (signal ports)
due to conductor-earth surge according to IEC 61000-4-5 2 kV
due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
design of the electrical isolation galvanic isolation
between input and output Yes
between the outputs Yes
between the voltage supply and other circuits Yes
protection class IP on the front according to IEC 60529 IP20
product component removable terminal for main circuit Yes
product component removable terminal for auxiliary and control circuit Yes
type of electrical connection screw terminal
design of terminals with cross-head screw PZ 1
solid 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 12
finely stranded with core end processing 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²
for AWG cables solid 1x (20 ... 12), 2x (20 ... 14)
stranded 20 ... 12
tightening torque with screw-type terminals 0.6 ... 0.8 N·m
stripped length 10 mm
mounting position any
fastening method screw and snap-on mounting onto 35 mm DIN rail
height 100 mm
width 22.5 mm
depth 90 mm
— forwards 0 mm
— backwards 0 mm
— upwards 0 mm
— downwards 0 mm
— at the side 0 mm
installation altitude at height above sea level maximum 2 000 m
during operation -25 ... +60 °C
during storage -40 ... +85 °C
during transport -40 ... +85 °C
relative humidity during operation maximum 70 %
global warming potential [CO2 eq] / during manufacturing 5.06 kg
global warming potential [CO2 eq] / during sales 0.0432 kg
global warming potential [CO2 eq] / during operation 12.3 kg
global warming potential [CO2 eq] / after end of life -0.132 kg
global warming potential [CO2 eq] / total 17.3 kg
