Siemens 3UG4632-1AW30

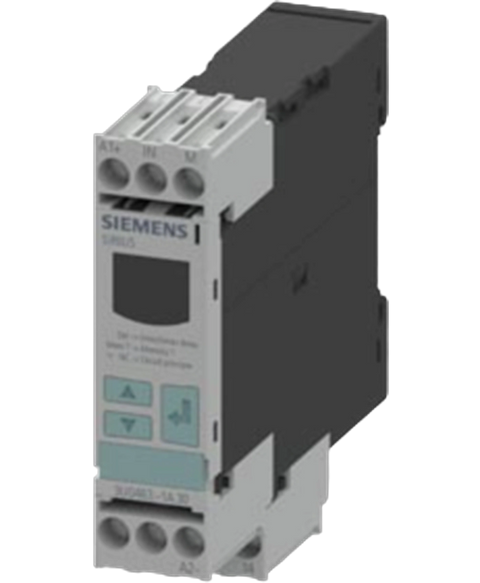

Siemens 3UG4632-1AW30 voltage monitoring relay, 10-600V AC,DC, DIN rail mount, 1 changeover contact.
This Siemens 3UG4632-1AW30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Monitoring relays range and is referenced internally as PartLogic SKU PL26801717163.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$416.05
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Voltage monitoring relay with digital setting |
| product type designation | 3UG4 |
| product function | Voltage monitoring relay |
| design of the display | LCD |
| with degree of pollution 3 rated value | 690 V |
| for monitoring | AC/DC |
| of the control supply voltage | AC/DC |
| surge voltage resistance rated value | 4 kV |
| between auxiliary and auxiliary circuit | 300 V |
| between control and auxiliary circuit | 300 V |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 0.14 kg |
| undervoltage detection | Yes |
| overvoltage detection | Yes |
| overvoltage detection 1 phase | Yes |
| overvoltage detection 3 phase | No |
| overvoltage detection DC | Yes |
| undervoltage detection 1 phase | Yes |
| undervoltage detection 3 phases | No |
| undervoltage detection DC | Yes |
| voltage window recognition 1 phase | Yes |
| voltage window recognition 3 phase | No |
| voltage window recognition DC | Yes |
| adjustable open/closed-circuit current principle | Yes |
| external reset | Yes |
| auto-RESET | Yes |
| at 50 Hz rated value | 24 ... 240 V |
| at 60 Hz rated value | 24 ... 240 V |
| control supply voltage at DC rated value | 24 ... 240 V |
| initial value | 0.85 |
| full-scale value | 1.1 |
| measurable line frequency | 40 ... 500 Hz |
| measurable voltage at AC | 10 ... 600 V |
| measurable voltage at DC | 10 ... 600 V |
| when starting | 20 s |
| with lower or upper limit violation | 0.1 ... 20 s |
| accuracy of digital display | +/-1 digit |
| relative temperature-related measurement deviation | 0.1 % |
| relative metering precision | 5 % |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| number of CO contacts delayed switching | 1 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| number of poles for main current circuit | 1 |
| — at 50 Hz rated value | 240 ... 240 V |
| — at 60 Hz rated value | 240 ... 240 V |
| at DC rated value | 24 ... 24 V |
| ampacity of the output relay at AC-15 at 400 V at 50/60 Hz | 3 A |
| at 24 V | 1 A |
| at 125 V | 0.2 A |
| at 250 V | 0.1 A |
| operational current at 17 V minimum | 5 mA |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| due to burst according to IEC 61000-4-4 | 2 kV |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| design of the electrical isolation | Protective separation |
| between input and output | Yes |
| between the outputs | Yes |
| between the voltage supply and other circuits | Yes |
| protection class IP on the front according to IEC 60529 | IP20 |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | screw terminal |
| solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 14 |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2)0.5 ... 2.5 mm² |
| for AWG cables solid | 2x (20 ... 14) |
| for AWG cables stranded | 2x (20 ... 14) |
| stranded | 20 ... 14 |
| tightening torque with screw-type terminals | 1.2 ... 0.8 N·m |
| mounting position | any |
| fastening method | snap-on mounting |
| height | 92 mm |
| width | 22.5 mm |
| depth | 91 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| global warming potential [CO2 eq] / during manufacturing | 4.44 kg |
| global warming potential [CO2 eq] / during sales | 0.0341 kg |
| global warming potential [CO2 eq] / during operation | 13.7 kg |
| global warming potential [CO2 eq] / after end of life | -1.06 kg |
| global warming potential [CO2 eq] / total | 17.1 kg |
