Siemens 3UG46221AA30

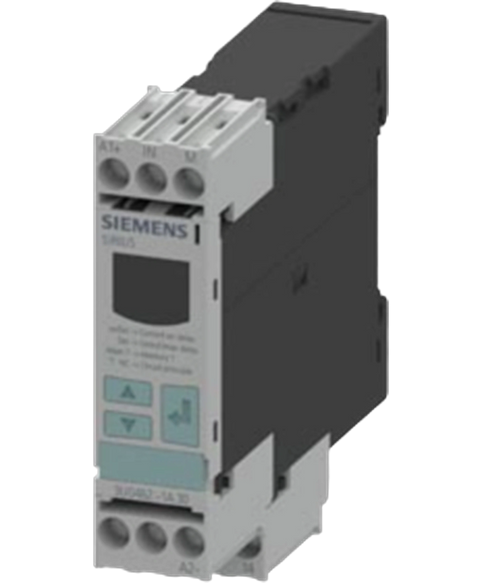

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3UG46221AA30

SKU: PL27090795797
MPN: 3UG46221AA30

Digital monitoring relay Current monitoring, 22.5 mm from 0.05-10 A AC,DC 0vershoot and undershoot Supply voltage: 24 V AC,DC 50 to 60 Hz DC and AC without galvanic isolation to measuring circuit ON delay and noise pulses delay 0.1 to 20 s Hysteresis 0.01 to 5 A 1 change-over contact with or without fault buffer screw terminal Successor product for 3UG3522-1AC..

This Siemens 3UG46221AA30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Monitoring relays range and is referenced internally as PartLogic SKU PL27090795797.

Brand New - 12 Months Warranty
$407.53 (inc. GST)
In Stock

Datasheet

1 0.1 ... 10 A
2 0.1 ... 10 A
product brand name SIRIUS
product designation Current monitoring relay with digital setting
product type designation 3UG4
product function Current monitoring relay
design of the display LCD
with degree of pollution 3 rated value 690 V
degree of pollution 3
type of voltage of the operating voltage AC/DC
surge voltage resistance rated value 4 kV
between auxiliary and auxiliary circuit 300 V
between control and auxiliary circuit 300 V
shock resistance according to IEC 60068-2-27 sinusoidal half-wave 15g / 11 ms
vibration resistance according to IEC 60068-2-6 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current of the switching element with contacts maximum 5 A
reference code according to IEC 81346-2 K
relative repeat accuracy 1 %
Substance Prohibitance (Date) 05/01/2012
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 0.141 kg
overcurrent detection 1 phase Yes
overcurrent detection 3 phase No
undercurrent detection 1 phase Yes
undercurrent detection 3 phases No
overcurrent detection DC Yes
undercurrent detection DC Yes
current window recognition DC Yes
voltage window recognition 1 phase No
voltage window recognition 3 phase No
adjustable open/closed-circuit current principle Yes
external reset Yes
auto-RESET Yes
at 50 Hz rated value 24 ... 240 V24 V
at 60 Hz rated value 24 ... 240 V24 V
control supply voltage at DC rated value 24 ... 240 V
type of voltage of the supply voltage AC/DC
at 50 Hz 20.4 ... 26.4 V
at 60 Hz 20.4 ... 26.4 V
supply voltage 1 at DC 20.4 ... 26.4 V
supply voltage 1 at DC rated value 24 V
type of current for monitoring AC/DC
measurable current 0.05 ... 15 A
measurable line frequency 40 ... 500 Hz
when starting 0.1 ... 20 s
with lower or upper limit violation 0.1 ... 20 s
adjustable switching hysteresis for measured current value 10 ... 5 000 mA
buffering time in the event of power failure minimum 10 ms
accuracy of digital display +/-1 digit
relative temperature-related measurement deviation 5 %
internal resistance of the measuring circuit 5 mΩ
relative metering precision 5 %
temperature drift per °C 0.1 %/°C
number of NC contacts delayed switching 0
number of NO contacts delayed switching 0
delayed switching 1
operating frequency with 3RT2 contactor maximum 5 000 1/h
number of poles for main current circuit 1
operating voltage rated value 24 ... 24 V
at 250 V at 50/60 Hz 3 A
at 400 V at 50/60 Hz 3 A
at 24 V 1 A
at 125 V 0.2 A
at 250 V 0.1 A
operational current at 17 V minimum 0 A
continuous current of the DIAZED fuse link of the output relay 4 A
due to burst according to IEC 61000-4-4 2 kV
due to conductor-earth surge according to IEC 61000-4-5 2 kV
due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
design of the electrical isolation Protective separation
between input and output Yes
between the outputs Yes
between the voltage supply and other circuits No
protection class IP on the front according to IEC 60529 IP20
product component removable terminal for main circuit Yes
product component removable terminal for auxiliary and control circuit Yes
type of electrical connection screw terminal
for main current circuit screw-type terminals
for auxiliary and control circuit screw-type terminals
solid 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 14
finely stranded with core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)0.5 ... 2.5 mm²
for AWG cables solid 2x (20 ... 14)
for AWG cables stranded 2x (20 ... 14)
stranded 20 ... 14
tightening torque with screw-type terminals 0.8 ... 1.2 N·m
mounting position any
fastening method snap-on mounting
height 92 mm
width 22.5 mm
depth 91 mm
— forwards 0 mm
— backwards 0 mm
— upwards 0 mm
— downwards 0 mm
— at the side 0 mm
installation altitude at height above sea level maximum 2 000 m
during operation -25 ... +60 °C
during storage -40 ... +85 °C
during transport -40 ... +85 °C
global warming potential [CO2 eq] / during manufacturing 4.44 kg
global warming potential [CO2 eq] / during sales 0.0341 kg
global warming potential [CO2 eq] / during operation 13.7 kg
global warming potential [CO2 eq] / after end of life -1.06 kg
global warming potential [CO2 eq] / total 17.1 kg
