Siemens 3UG4615-1CR20

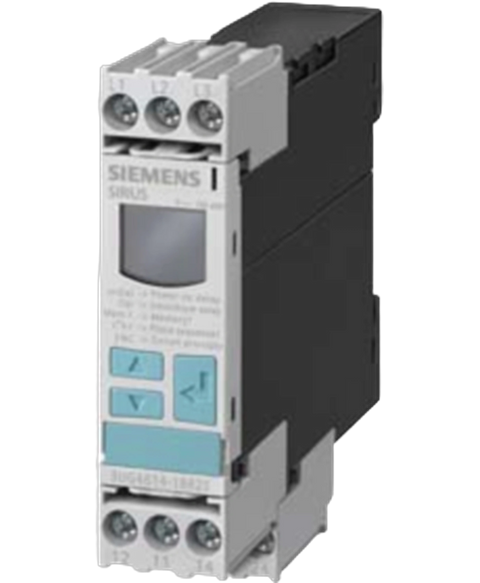

Siemens 3UG4615-1CR20 monitoring relay, 3-phase voltage.
This Siemens 3UG4615-1CR20 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Monitoring relays range and is referenced internally as PartLogic SKU PL26801350876.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$249.91
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Network monitoring relay with digital setting |
| design of the product | 5 functions |
| product type designation | 3UG4 |
| product function | Phase monitoring relay |
| display version LED | No |
| design of the display | LCD |
| with degree of pollution 3 rated value | 690 V |
| degree of pollution | 3 |
| for monitoring | AC |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 146 g |
| undervoltage detection | Yes |
| overvoltage detection | Yes |
| phase sequence recognition | Yes |
| phase failure detection | Yes |
| asymmetry detection | Yes; not adjustable, indirectly by monitoring the voltage limit values |
| overvoltage detection 3 phase | Yes |
| undervoltage detection 3 phases | Yes |
| voltage window recognition 3 phase | Yes |
| adjustable open/closed-circuit current principle | Yes |
| auto-RESET | Yes |
| type of voltage of the control supply voltage | AC |
| initial value | 1 |
| full-scale value | 1 |
| with lower or upper limit violation | 0.1 ... 20 s |
| response time maximum | 450 ms |
| accuracy of digital display | +/-1 digit |
| relative metering precision | 5 % |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| for auxiliary contacts | 2 |
| delayed switching | 2 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| number of poles for main current circuit | 3 |
| at 250 V at 50/60 Hz | 3 A |
| at 400 V at 50/60 Hz | 3 A |
| at 24 V | 1 A |
| at 125 V | 0.2 A |
| at 250 V | 0.1 A |
| operational current at 17 V minimum | 5 mA |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| due to burst according to IEC 61000-4-4 | 2 kV |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| between input and output | Yes |
| between the outputs | Yes |
| between the voltage supply and other circuits | Yes |
| protection class IP on the front according to IEC 60529 | IP20 |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | screw terminal |
| solid | 1x (0.5 ... 4.0mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 14 |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)0.5 ... 2.5 mm² |
| for AWG cables solid | 2x (20 ... 14) |
| for AWG cables stranded | 2x (20 ... 14) |
| stranded | 20 ... 14 |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| mounting position | any |
| fastening method | snap-on mounting |
| height | 92 mm |
| width | 22.5 mm |
| depth | 91 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| global warming potential [CO2 eq] / during manufacturing | 4.44 kg |
| global warming potential [CO2 eq] / during sales | 0.0341 kg |
| global warming potential [CO2 eq] / during operation | 13.7 kg |
| global warming potential [CO2 eq] / after end of life | -1.06 kg |
| global warming potential [CO2 eq] / total | 17.1 kg |
