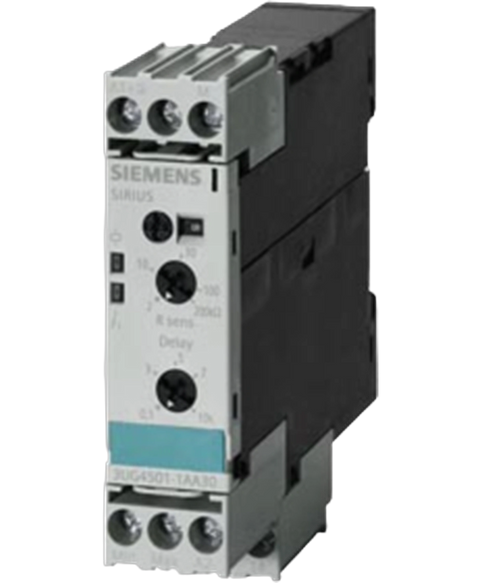

Siemens 3UG4501-1AW30
Analog Monitoring Relay, Fill Level , Resistance Monitoring, 2-200Ω
This Siemens 3UG4501-1AW30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Monitoring relays range and is referenced internally as PartLogic SKU PL26805616417.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$336.53
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Level monitoring relay with analog setting |
| product type designation | 3UG4 |
| manufacturer's article number of the optional sensor | 2-pole and 3-pole sensors 3UG3207 |
| product function | Monitoring relay for level monitoring |
| display version LED | Yes |
| — at 24 V maximum | 2 VA |
| — at 240 V maximum | 4 VA |
| for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| of the operating voltage for actuation | AC/DC |
| of the control supply voltage | AC/DC |
| surge voltage resistance rated value | 4 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 0.144 kg |
| outlet monitoring adjustable | Yes |
| adjustable responsiveness | Yes |
| inlet monitoring adjustable | Yes |
| external reset | Yes |
| at 50 Hz rated value | 24 ... 240 V |
| at 60 Hz rated value | 24 ... 240 V |
| control supply voltage at DC rated value | 24 ... 240 V |
| initial value | 0.85 |
| full-scale value | 1.1 |
| when starting | 0.5 ... 10 s |
| with lower or upper limit violation | 0.5 ... 10 s |
| buffering time in the event of power failure minimum | 200 ms |
| response time maximum | 300 ms |
| physical measuring principle | conductive |
| relative metering precision | 20 % |
| temperature drift per °C | 1 %/°C |
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| delayed switching | 1 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| at 250 V at 50/60 Hz | 3 A |
| at 400 V at 50/60 Hz | 3 A |
| at 24 V | 1 A |
| at 125 V | 0.2 A |
| at 250 V | 0.1 A |
| operational current at 17 V minimum | 5 mA |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
| due to burst according to IEC 61000-4-4 | 2 kV |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| between input and output | Yes |
| between the outputs | No |
| protection class IP on the front according to IEC 60529 | IP20 |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | screw terminal |
| solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 14 |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)0.5 ... 2.5 mm² |
| for AWG cables solid | 2x (20 ... 14) |
| for AWG cables stranded | 2x (20 ... 14) |
| stranded | 20 ... 14 |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 92 mm |
| width | 22.5 mm |
| depth | 91 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| global warming potential [CO2 eq] / during manufacturing | 3.51 kg |
| global warming potential [CO2 eq] / during sales | 0.0276 kg |
| global warming potential [CO2 eq] / during operation | 13.7 kg |
| global warming potential [CO2 eq] / after end of life | -1.12 kg |
| global warming potential [CO2 eq] / total | 16.1 kg |
