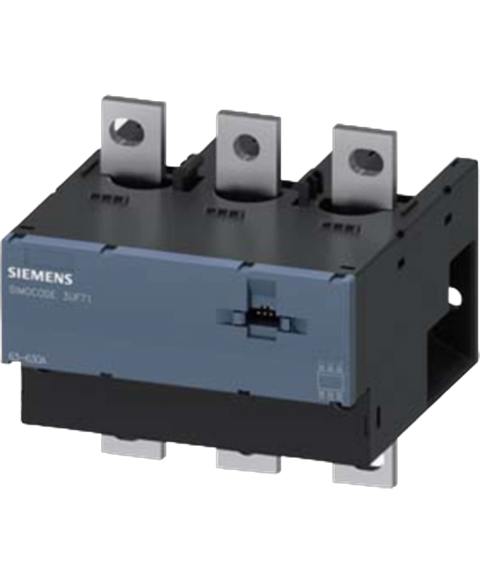

Siemens 3UF7104-1BA00-0
Siemens 3UF7104-1BA00 Current Measuring Module, 63-630A, Busbar
This Siemens 3UF7104-1BA00-0 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Electronic overload relays range and is referenced internally as PartLogic SKU PL26933710342.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMOCODE |
| product designation | Current measuring module |
| size of the circuit-breaker | S10, S12 |
| current measurement | Yes |
| voltage measurement | No |
| active power measurement | No |
| energy measurement | No |
| frequency measurement | No |
| input for thermistor connection | No |
| consumed active power | 0.2 W |
| with degree of pollution 3 at AC rated value | 690 V |
| for wires of main circuit according to IEC 60947-1 rated value | 8 kV |
| surge voltage resistance rated value | 8 000 V |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance | 1-6 Hz / 15 mm; 6-500 Hz / 2 g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (Date) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 |
| Net Weight | 1.773 kg |
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| due to burst according to IEC 61000-4-4 | 2 kV |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| number of outputs as contact-affected switching element | 0 |
| power factor monitoring | No |
| ground-fault monitoring | No |
| voltage detection | No |
| trip class | CLASS 5E |
| current detection | Yes |
| overload protection | Yes |
| mounting position | any |
| fastening method | direct mounting / stand-alone installation |
| height | 147 mm |
| width | 145 mm |
| depth | 148 mm |
| top | 30 mm |
| bottom | 30 mm |
| left | 0 mm |
| right | 0 mm |
| for main current circuit | busbar connection |
| solid with core end processing | 50 mm² ... 240 mm² |
| stranded with core end processing | 70 mm² ... 240 mm² |
| for AWG cables | 1/0 kcmil ... 500 kcmil |
| design of the thread of the connection screw at the measurement inputs for current | M8 x 25 |
| 1 maximum | 2 000 m |
| 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 5 ... 95 % |
| product function short circuit protection | No |
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
| according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
| according to UKCA | ITS21UKEX0464 |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 63 ... 630 A |
| — at 50 Hz rated value | 110 ... 690 V |
| — at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| type of voltage | AC |
