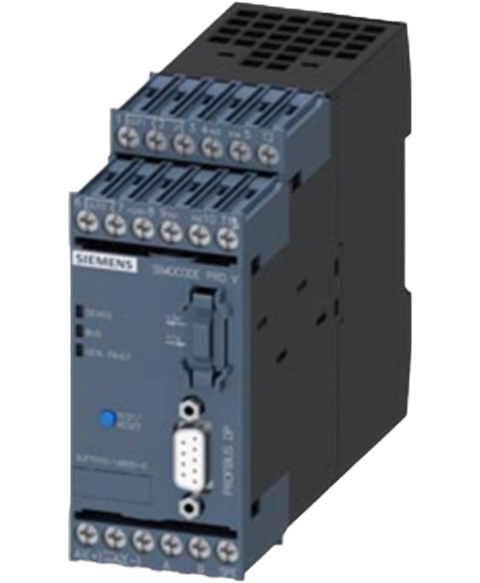

Product image for illustrative purposes only. Actual item may vary.
Siemens 3UF70101AB000
SIMOCODE PRO V MODULO BASE 24 VDC
This Siemens 3UF70101AB000 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Electronic overload relays range and is referenced internally as PartLogic SKU PL27090747437.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$955.65
(inc. GST)
In Stock
| product brand name | SIMOCODE |
| product designation | Motor management system |
| design of the product | basic unit 2 |
| certificate of suitability | CE / UL / CSA / CCC / C-Tick (RCM) / GOST / NOM / ATEX / NEPSI / ABS / DNV / GL / LRS / RoHS |
| current measurement | No |
| voltage measurement | No |
| active power measurement | Yes |
| energy measurement | No |
| frequency measurement | No |
| bus communication | Yes |
| data acquisition function | Yes |
| diagnostics function | Yes |
| password protection | Yes |
| test function | Yes |
| maintenance function | Yes |
| MRRT redundancy procedure | No |
| input for thermistor connection | Yes |
| digital input | Yes |
| input for analog temperature sensors | No |
| input for ground fault detection | No |
| relay output | Yes |
| temperature monitoring module | Yes |
| current measuring module | Yes |
| current/voltage measuring module | Yes |
| fail-safe digital I/O module | Yes |
| ground-fault monitoring module | Yes |
| decoupling module | Yes |
| analog I/O module | Yes |
| digital I/O module with monostable outputs | Yes |
| digital I/O module with bistable outputs | Yes |
| control unit with display | Yes |
| control unit | Yes |
| consumed active power | 2.6 W |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| surge voltage resistance rated value | 4 000 V |
| according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance | 1-6 Hz / 15 mm; 6-500 Hz / 2 g |
| at 24 V | 6 A2 A11 A1.1 ms |
| at 120 V | 6 A |
| at 230 V | 3 A |
| at 60 V | 0.55 A |
| at 125 V | 0.25 A |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) typical | 100 000 |
| buffering time in the event of power failure | 0.05 s |
| reference code according to IEC 81346-2 | F |
| at 50 °C | 6 A |
| at 60 °C | 5 A |
| type of input characteristic | Type 1 in accordance with EN 61131-2 |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 342 g |
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions according to CISPR11 | corresponds to degree of severity A |
| field-bound HF interference emission according to CISPR11 | corresponds to degree of severity A |
| parameterizable inputs | Yes |
| parameterizable outputs | Yes |
| number of inputs | 4 |
| for thermistor connection | 1 |
| number of digital inputs with a common reference potential | 4 |
| type 1 acc. to IEC 61131 | Yes |
| rated value | 24 V |
| number of outputs | 3 |
| number of semiconductor outputs | 0 |
| number of outputs as contact-affected switching element | 3 |
| switching behavior | monostable |
| number of relay outputs | 3 |
| type of relay outputs | Monostable |
| wire length for digital signals maximum | 300 m |
| with conductor cross-section = 0.5 mm² maximum | 50 m |
| with conductor cross-section = 1.5 mm² maximum | 150 m |
| with conductor cross-section = 2.5 mm² maximum | 250 m |
| asymmetry detection | Yes |
| blocking current evaluation | Yes |
| power factor monitoring | Yes |
| ground fault detection | Yes |
| ground-fault monitoring | No |
| phase failure detection | Yes |
| phase sequence recognition | Yes |
| voltage detection | Yes |
| monitoring of number of start operations | Yes |
| overvoltage detection | Yes |
| overcurrent detection 1 phase | Yes |
| undervoltage detection | Yes |
| undercurrent detection 1 phase | Yes |
| active power monitoring | Yes |
| current detection | Yes |
| overload protection | Yes |
| evaluation of thermistor motor protection | Yes |
| total cold resistance number of sensors in series maximum | 1.5 kΩ |
| response value of thermoresistor | 3 400 ... 3 800 Ω |
| of the short-circuit control | 9 Ω |
| release value of thermoresistor | 1 500 ... 1 650 Ω |
| parameterizable overload relay | Yes |
| circuit breaker control | Yes |
| direct start | Yes |
| reverse starting | Yes |
| star-delta circuit | Yes |
| star-delta reversing circuit | Yes |
| Dahlander circuit | Yes |
| Dahlander reversing circuit | Yes |
| pole-changing switch circuit | Yes |
| pole-changing switch reversing circuit | Yes |
| slide control | Yes |
| valve control | Yes |
| PROFIBUS DP protocol | Yes |
| PROFINET IO protocol | No |
| PROFIsafe protocol | Yes |
| Modbus RTU | No |
| EtherNet/IP | No |
| OPC UA Server | No |
| LLDP | No |
| Address Resolution Protocol (ARP) | No |
| SNMP | No |
| HTTPS | No |
| NTP | No |
| Media Redundancy Protocol (MRP) | No |
| web server | No |
| shared device | No |
| at the Ethernet interface Autocrossover | No |
| at the Ethernet interface Autonegotiation | No |
| at the Ethernet interface Autosensing | No |
| is supported Device Level Ring (DLR) | No |
| is supported PROFINET system redundancy (S2) | No |
| supports PROFIenergy measured values | No |
| supports PROFIenergy shutdown | No |
| transfer rate maximum | 12 Mbit/s |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| I&M2 - installation date | Yes |
| I&M3 - comment | Yes |
| type of electrical connection of the communication interface | 9-pin SUB-D socket (12 Mbit) / screw terminal (1.5 Mbit) |
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 111 mm |
| width | 45 mm |
| depth | 124 mm |
| top | 40 mm |
| bottom | 40 mm |
| left | 0 mm |
| right | 0 mm |
| product component removable terminal for auxiliary and control circuit | Yes |
| for auxiliary and control circuit | screw-type terminals |
| solid | 1x (0.5 ... 4.0mm²), 2x (0.5 ... 2.5 mm²) |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| for AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| for AWG cables stranded | 1x (20 ... 14), 2x (20 ... 16) |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| tightening torque [lbf·in] with screw-type terminals | 7 ... 10.3 lbf·in |
| type of connectable conductor cross-sections for PROFIBUS wire | 2x 0.34 mm², AWG 22 |
| installation altitude at height above sea level maximum | 2 000 m |
| note | Restrictions apply to higher installation altitudes, see: https://support.industry.siemens.com/cs/document/109995153Test report No. A0258 must be observed (https://support.industry.siemens.com/cs/document/109748152) |
| during operation | -25 ... +60 °C5 ... 95 % |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
| design of short-circuit protection per output | Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A) |
| touch protection against electrical shock | finger-safe |
| IECEx | Yes; IECEx BVS 20.0020 / IECEx PTB 18.0004X |
| according to ATEX directive 2014/34/EU | BVS 06 ATEX F001, PTB 18 ATEX 5003 X |
| acc. to Equipment and Protective System Intended for Use in Potentially Explosive Atmospheres Regulations 2016 (S.I. 2016 No.1107) | ITS21UKEX0464, ITS21UKEX0455X |
| according to UKCA | ITS21UKEX0464, ITS21UKEX0455X |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) / I (M2), II (1/2) G, II (1G/2D) |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| design of the electrical isolation | Protective separation in accordance with IEC 60947-1 for all circuits |
| product function soft starter control | Yes |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 24 V |
| control supply voltage 1 at DC rated value | 24 V |
| initial value | 0.8 |
| full-scale value | 1.2 |
