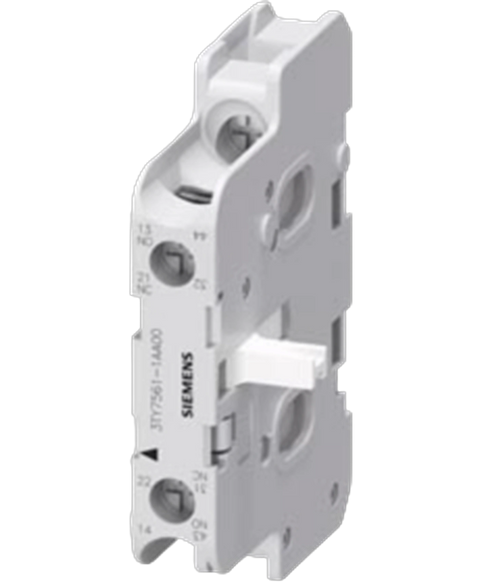

Siemens Auxiliary Switch Block, 1NO + 1NC, 5.6A for Size 2-14 (3TY7561-1AA00)
This Siemens 3TY7561-1AA00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Accessories range and is referenced internally as PartLogic SKU PL26805542483.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product category | Auxiliary switch |
| product designation | auxiliary switch |
| product type designation | 3TY7 |
| suitability for use | Contactor relay and power contactor |
| size of contactor | 2 ... 14 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front | IP20 |
| mechanical service life (operating cycles) typical | 10 000 000 |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.048 kg |
| instantaneous contact | 1 |
| lagging switching | 0 |
| leading contact | 0 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| operational current at AC-15 at 690 V rated value | 2.3 A |
| at 24 V | 10 A |
| at 230 V | 10 A5.6 A |
| at 125 V | 10 A0.98 A |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| at 400 V | 3.6 A |
| at 110 V | 3.2 A1.14 A |
| at 220 V | 0.9 A0.48 A |
| at 48 V | 5 A |
| at 60 V | 5 A |
| during operation | -25 ... +55 °C |
| during storage | -55 ... +80 °C |
| positively driven operation according to IEC 60947-5-1 | Yes |
| fastening method | snap-on mounting |
| height | 70 mm |
| width | 12 mm |
| depth | 51.5 mm |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| solid or stranded | 0.5 ... 2.5 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| — solid or stranded | 2x (0,5 ... 1,0 mm²), 2x (1,0 ... 2,5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (18 ... 12) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 18 ... 12 |
