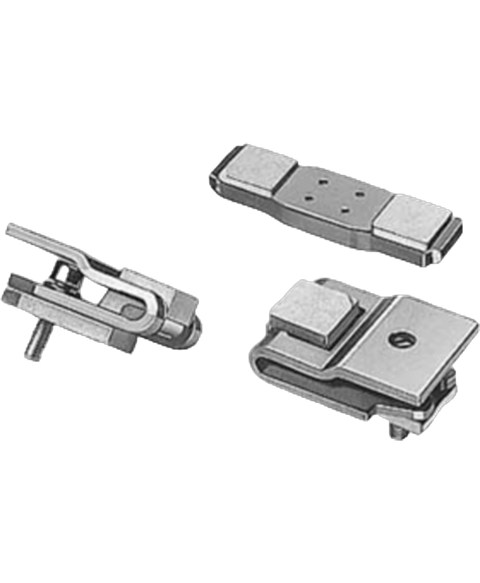

Siemens 3TY7510-0A
The Siemens 3TY7510-0A functions as a main contact kit designed for use with 3TF51 series contactors. It features three movable contacts and six fixed contacts, operating effectively within a rated phase of three phases. This unit is rated for voltages ranging from 230 to 460 Volts AC and supports an operating frequency between 50 and 60 Hertz.
This Siemens 3TY7510-0A is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Accessories range and is referenced internally as PartLogic SKU PL26805560389.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Main Contact Kit |
| Product Line | Other |
| Part Number | 3TY7510-0A |
| UPC | 754554338446 |
| Weight | 0.50 lbs (0.23 kg) |
| Series | Breakers |
| Number of Movable Contacts | 3 movable contacts |
| Number of Fixed Contacts | 6 fixed contacts |
| Rated Phase | 3-phase |
| Voltage Rating | 230 to 460 Volts AC |
| Number of Poles for the Contactors | 3 poles |
| Operating Frequency | 50 to 60 Hertz |
| Mounting Method | DIN rail mount or screw mount |
| Ambient Operating Temperature | -25 to 55°C (in a non-condensing environment) |
| Compatibility | 3TF51 Series contactors |
| Compliance Standards | UKCA, EAC, and CE-approved |
| Storage Temperature | -55 to 80°C (in a non-condensing environment) |
| Brand | Siemens |
