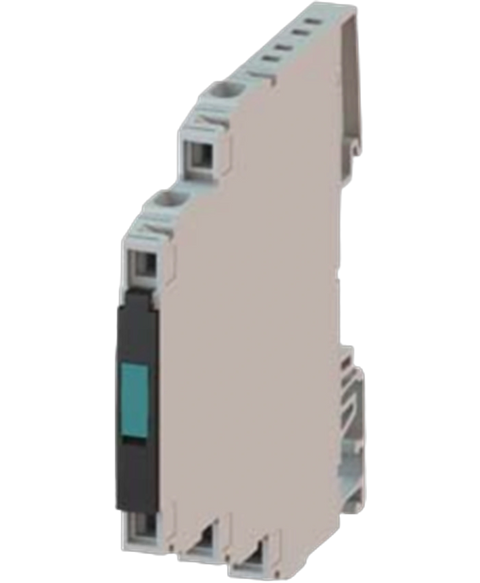

Siemens 3TX7005-1LB00
Siemens 3TX7005-1LB00 interface relay, 24VAC,DC.
This Siemens 3TX7005-1LB00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Accessories range and is referenced internally as PartLogic SKU PL26842421789.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.027 kg |
| at 50 Hz rated value | 24 ... 24 V |
| at 60 Hz rated value | 24 ... 24 V |
| control supply voltage at DC rated value | 24 ... 24 V |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| design of the switching function | changeover switch |
| design of the relay operating mechanism | poled |
| type of switching contact | single contact |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 1 |
| at 230 V | 3 A |
| operational current of auxiliary contacts at DC-13 at 230 V | 0.1 A |
| type of voltage | AC/DC |
| type of electrical connection | spring-loaded terminals |
| fastening method | snap-on mounting |
| height | 80 mm |
| width | 6.2 mm |
| depth | 86 mm |
| ambient temperature during operation | -25 ... +60 °C |
