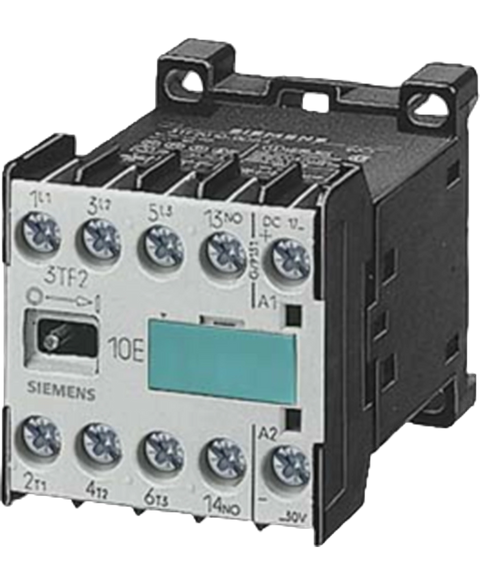

Siemens 3TF20010BB4
Contactor, Size 00, 3-pole, AC-3 4 kW,400 V, screw terminal Auxiliary switch 01E (1 NC) 24 V DC DC operation
This Siemens 3TF20010BB4 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27085146826.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product designation | Miniature contactor |
| product type designation | 3TF2 |
| size of contactor | 0 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 07/01/2006 |
| during operation | -25 ... +55 °C |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| — at 400 V rated value | 9 A4 kW |
| at AC-4 at 400 V rated value | 2.6 A1 150 W |
| at AC-1 at 400 V rated value | 10 kW |
| type of voltage of the control supply voltage | DC |
| rated value | 24 V |
| control version of the switch operating mechanism | conventional |
| instantaneous contact | 10 |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| side-by-side mounting | Yes |
| height | 48 mm |
| width | 45 mm |
| depth | 68 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
