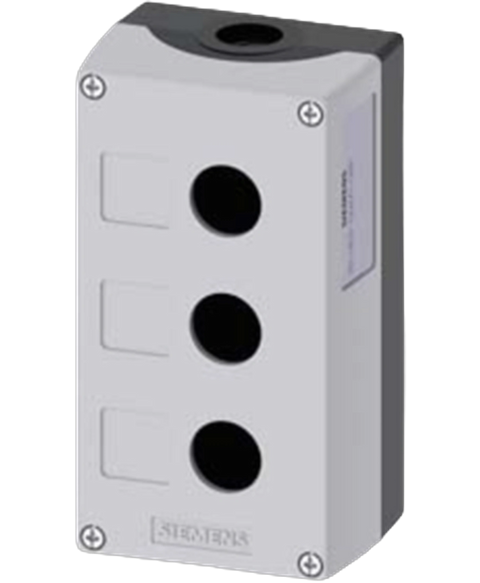

Siemens 3SU18030AA000AB1
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, without equipment
This Siemens 3SU18030AA000AB1 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Enclosures range and is referenced internally as PartLogic SKU PL27085161826.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| design of the housing | with recess for label |
| shape of the enclosure front | rectangular |
| material of the enclosure | plastic |
| number of command points | 3 |
| product component protective collar | No |
| color of the enclosure top part | grey |
| fastening method of the enclosure | Vertical / horizontal |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Substance Prohibitance (Date) | 10/01/2014 |
| Net Weight | 374.5 g |
| cable entry type | Without |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| during operation | -25 ... +70 °C |
| during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| height | 154 mm |
| width | 85 mm |
| depth | 64 mm |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
