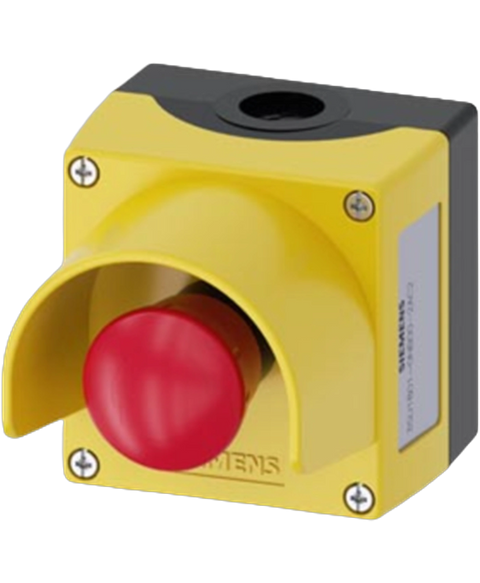

Siemens 3SU18010NB002AC2
Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, with protective collar, 1 control point plastic, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, screw terminal, floor mounting, 1xM20 each on top and bottom
This Siemens 3SU18010NB002AC2 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Enclosures range and is referenced internally as PartLogic SKU PL27085168803.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| equipment of commanding and signaling device | A = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism |
| of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| of supplied contact module at the command point A 2 | 3SU1400-2AA10-1CA0 |
| of the supplied holder at the command point A | 3SU1500-0AA10-0AA0 |
| of the supplied actuator at the command point A | 3SU1000-1HB20-0AA0 |
| of supplied empty enclosure | 3SU1801-0AA00-0AC2 |
| design of the housing | with protective collar |
| shape of the enclosure front | Square |
| material of the enclosure | plastic |
| number of command points | 1 |
| EMERGENCY STOP device | Yes |
| protective collar | No |
| color of the enclosure top part | yellow |
| as a kit | No |
| pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| suitability for use EMERGENCY OFF switch | Yes |
| product feature lockout | No |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 2 |
| type of unlocking device | A = rotate-to-unlatch mechanism |
| product component front ring | No |
| design of the front ring | Standard |
| material of the holder | Plastic |
| number of LED modules | 0 |
| positive opening | Yes |
| EMERGENCY OFF function | Yes |
| EMERGENCY STOP function | Yes |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| for railway applications according to EN 61373 | Category 1, Class B |
| according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (Date) | 10/01/2014 |
| Net Weight | 369 g |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| at DC rated value | 5 ... 500 V |
| design of the interface for communication | without |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 0 |
| type of electrical connection of modules and accessories | Screw-type terminal |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
| product function suitable for safety function | Yes |
| test wear-related service life necessary | Yes |
| with low demand rate according to SN 31920 | 20 % |
| with high demand rate per NC contact according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| failure rate [FIT] with low demand rate per NC contact according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
| safety device type according to IEC 61508-2 | Type A |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| during operation | -25 ... +70 °C |
| during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| height | 85 mm |
| width | 85 mm |
| depth | 112.5 mm |
| shape of the installation opening | round |
| number of labels | 0 |
| number of inscription plates | 0 |
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
