Siemens 3SU14002AA103BA0

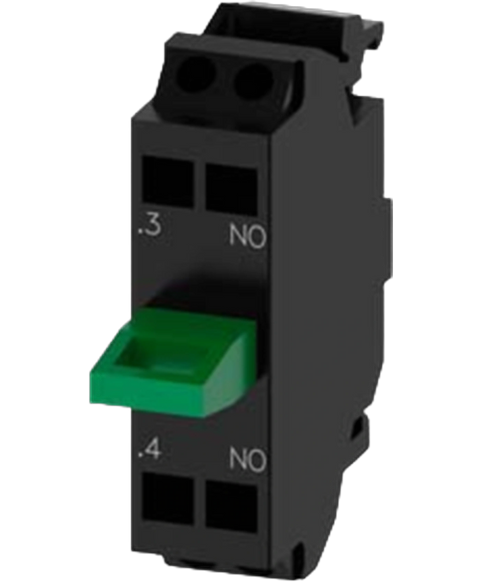

Contact module with 1 contact element, 1 NO, spring-type terminal, for floor mounting
This Siemens 3SU14002AA103BA0 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights > Accessories range and is referenced internally as PartLogic SKU PL27085189487.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| of the operating voltage | AC/DC |
| of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| of the enclosure | IP40 |
| of the terminal | IP20 |
| according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| for railway applications according to EN 61373 | Category 1, Class B |
| according to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| Substance Prohibitance (Date) | 10/01/2014 |
| Net Weight | 8 g |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| at DC rated value | 5 ... 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |
| lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| leading contact | 0 |
| at 24 V rated value | 10 A6 A3 A |
| at 48 V rated value | 10 A6 A5 A1.5 A |
| at 110 V rated value | 10 A6 A2.5 A0.7 A |
| at 230 V rated value | 8 A6 A1 A0.3 A |
| at 400 V rated value | 8 A3 A0.3 A0.1 A |
| at 500 V rated value | 1.4 A0.3 A0.1 A |
| type of electrical connection | spring-loaded terminals |
| solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| for AWG cables | 2x (24 ... 16) |
| during operation | -25 ... +70 °C |
| during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |
| fastening method | floor mounting |
| of modules and accessories | Floor mounting |
| height | 36 mm |
| width | 9.8 mm |
| depth | 27.7 mm |
| plastic enclosure | Yes |
| metal enclosure | Yes |
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
