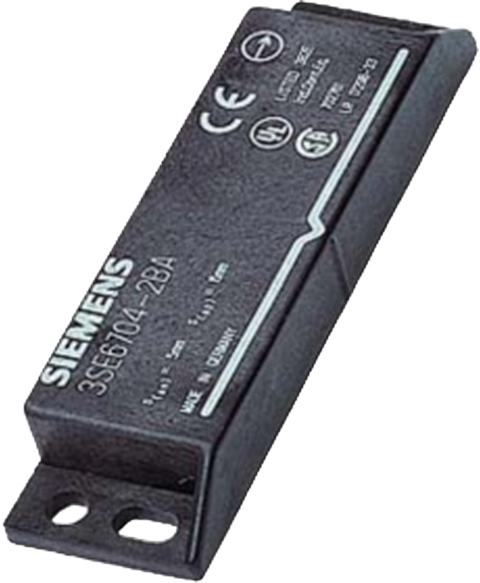

Siemens 3SE6704-2BA
Siemens 3SE67042BA actuator, coded magnet, rectangular.
This Siemens 3SE6704-2BA is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches > Accessories range and is referenced internally as PartLogic SKU PL26805547099.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | Magnetically operated switch |
| design of the product | coded magnet, rectangular |
| product type designation | 3SE67 |
| suitability for use safety-related circuits | Yes |
| positive opening | No |
| cross-circuit/short-circuit recognition | No |
| protection class IP | IP67 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.032 kg |
| height of the sensor | 13 mm |
| length of the sensor | 88 mm |
| width of the sensor | 25 mm |
| ambient temperature during operation | -25 ... +70 °C |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| design of the housing | block |
| material of the enclosure | plastic |
| evaluation unit required | yes |
| switching frequency | 5 Hz |
| fastening method | screw fixing |
| type of switching output | Reed contacts |
| category according to EN 954-1 | 4 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
