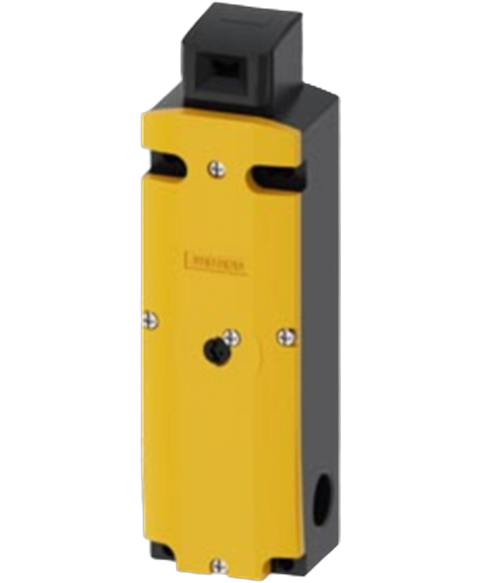

Product image for illustrative purposes only. Actual item may vary.
Siemens 3SE5322-0SD21
Siemens 3SE53220SD21 safety interlock switch, 24VDC, 1NO,2NC.
This Siemens 3SE5322-0SD21 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety switches range and is referenced internally as PartLogic SKU PL26805584717.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$664.55
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Mechanical safety switches |
| design of the product | with separate actuator and with tumbler |
| product type designation | 3SE5 |
| manufacturer's article number of the optional actuators | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing |
| suitability for use safety switch | Yes |
| product function positive opening | Yes |
| locking force | 1 300 N |
| according to EN ISO 14119 | 1 000 N |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66/IP67 |
| shock resistance | 30g / 11 ms |
| according to IEC 60068-2-27 | 30g / 11 ms |
| vibration resistance | 0.35 mm / 5g |
| according to IEC 60068-2-6 | 0.35 mm/5g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 10 A |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | B |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A; for a short-circuit current smaller than 400 A |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (Date) | 10/01/2011 |
| SVHC substance name | Lead - 7439-92-1 Imidazolidine-2-thione (2-imidazoline-2-thiol) - 96-45-7 |
| Net Weight | 506 g |
| minimum actuating force in directions of actuation | 30 N |
| length of the sensor | 185 mm |
| width of the sensor | 54 mm |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +80 °C |
| explosion protection category for dust | none |
| consumed active power of magnet coil | 3.5 W |
| at 24 V rated value | 6 A3 A |
| at 120 V rated value | 6 A |
| at 240 V rated value | 3 A |
| at 125 V rated value | 0.55 A |
| at 250 V rated value | 0.27 A |
| design of the housing | special design |
| material of the enclosure | plastic |
| design of the housing according to standard | No |
| locking mechanism design | spring-actuated lock (closed-circuit principle) with auxiliary release |
| design of the actuating element | 5 directions of approach |
| design of the switching function | positive opening |
| number of directions of actuation | 5 |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 4 |
| cable entry type | 3x (M20 x 1.5) |
| mounting position | any |
| fastening method | screw fixing |
| type of electrical connection | screw terminal |
| solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| finely stranded with core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| for AWG cables stranded | 1x (20 ... 16), 2x (20 ... 18) |
| supply voltage of magnet coil | 24 V |
| design of the interface for safety-related communication | without |
| design of the interface | without |
| product function suitable for safety function | Yes |
| service life maximum | 20 a |
| test wear-related service life necessary | Yes |
| with low demand rate according to SN 31920 | 20 % |
| with high demand rate according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
