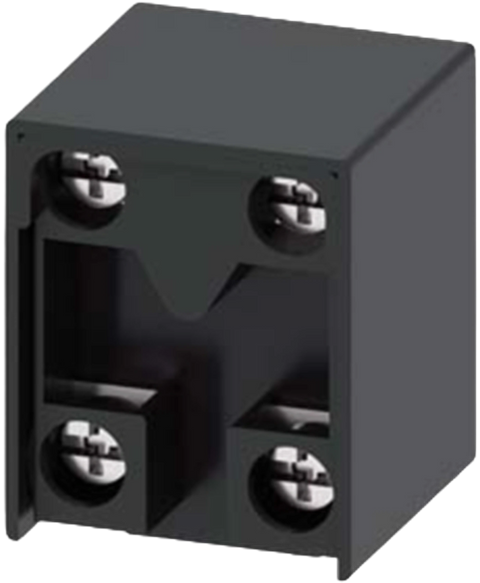

Siemens 3SE5000-0CA00
Siemens 3SE50000CA00 Contact Block for Position Switch, 1NO,1NC, Quick Action
This Siemens 3SE5000-0CA00 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches > Accessories range and is referenced internally as PartLogic SKU PL26805591041.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | contact |
| product type designation | 3SE5 |
| product function positive opening | Yes |
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP00 |
| according to IEC 60068-2-27 | 30g / 11 ms |
| according to IEC 60068-2-6 | 0.35 mm/5g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A |
| active principle | mechanical |
| repeat accuracy | 0.1 mm |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.022 kg |
| width of the sensor | 25 mm |
| during operation | -25 ... +85 °C |
| during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
| operating frequency rated value | 50 ... 60 Hz |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| at 24 V rated value | 6 A3 A |
| at 125 V rated value | 6 A0.55 A |
| at 240 V rated value | 6 A |
| at 400 V rated value | 4 A0.12 A |
| at 250 V rated value | 0.27 A |
| coating of the enclosure | Other types |
| design of the switching function | positive opening |
| circuit principle | snap-action contacts |
| number of switching contacts safety-related | 1 |
| mounting position | any |
| fastening method | snap-on mounting |
| type of electrical connection | screw terminal |
| solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| finely stranded with core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| for AWG cables stranded | 1x (20 ... 16), 2x (20 ... 18) |
| design of the interface for safety-related communication | without |
| design of the interface | without |
