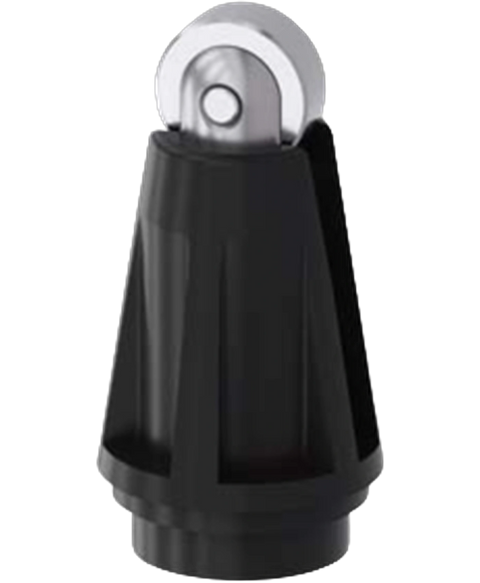

Siemens 3SE5000-0AD02
Siemens Actuator Head for Position Switch, Roller Plunger, Stainless Steel (3SE5000-0AD02)
This Siemens 3SE5000-0AD02 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches > Accessories range and is referenced internally as PartLogic SKU PL26805583416.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | actuator head for position switch |
| product type designation | 3SE5 |
| of the supplied actuator head for position switches | 3SE5000-0AD02 |
| product function positive opening | Yes |
| according to IEC 60068-2-27 | 30g / 11 ms |
| according to IEC 60068-2-6 | 0.35 mm/5g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| material of the enclosure of the switch head | metal |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.059 kg |
| minimum actuating force in directions of actuation | 20 N |
| during operation | -25 ... +85 °C |
| during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
| coating of the enclosure | Other types |
| design of the actuating element | Roller plunger, high-grade steel roller |
| standard-compliant actuator head | EN 50041, design C |
| shape of the switch head | roller |
| outer diameter of the switch head | 13 mm |
| mounting position | any |
| fastening method | lockable plug-in fixing |
| design of the interface for safety-related communication | without |
| design of the interface | without |
