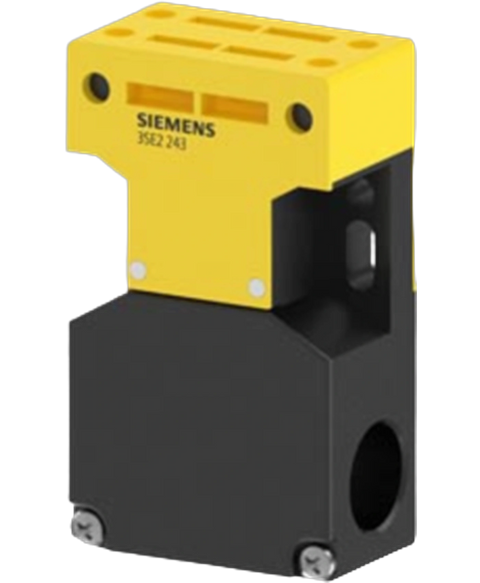

Siemens 3SE2243-0XX40
Siemens 3SE22430XX40 safety position switch, 1NO,2NC.
This Siemens 3SE2243-0XX40 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26805585556.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | safety position switch |
| product type designation | 3SE22 |
| suitability for use safety switch | Yes |
| insulation voltage rated value | 500 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP67 |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | B |
| active principle | mechanical |
| Substance Prohibitance (Date) | 07/01/2006 |
| SVHC substance name | Lead - 7439-92-1 |
| Net Weight | 0.139 kg |
| length of the sensor | 90 mm |
| width of the sensor | 52 mm |
| during operation | -30 ... +80 °C |
| during storage | -30 ... +80 °C |
| explosion protection category for dust | none |
| design of the switching contact | mechanical |
| operating frequency rated value | 60 ... 50 Hz |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| at 230 V rated value | 4 A |
| at 24 V rated value | 4 A |
| design of the housing | wide |
| material of the enclosure | glass fiber reinforced thermoplast |
| coating of the enclosure | Other types |
| design of the housing according to standard | No |
| design of the actuating element | without |
| design of the switching function | positive opening |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
| cable entry type | 3x (M20 x 1.5) |
| mounting position | any |
| fastening method | screw fixing |
| type of electrical connection | screw terminal |
| solid | 2x (0.75 ... 2.5 mm²) |
| finely stranded with core end processing | 2x (0.75 ... 2.5 mm²) |
| design of the interface for safety-related communication | without |
| design of the interface | without |
