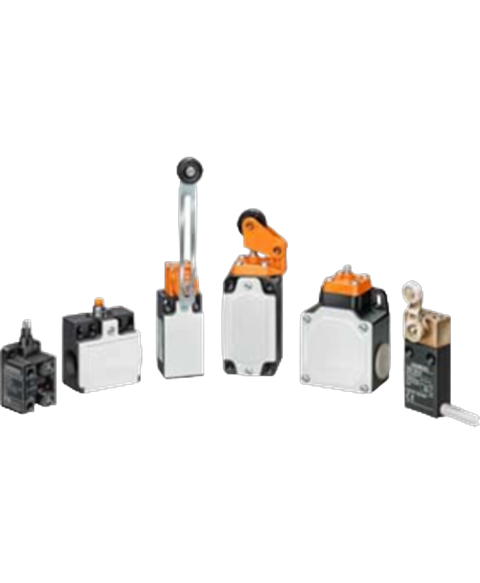

Product image for illustrative purposes only. Actual item may vary.
Siemens 3SE2100-1B
This Siemens 3SE2100-1B is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26805547808.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$126.37
(inc. GST)
In Stock
| product designation | position switch |
| suitability for use safety switch | Yes |
| protection class IP | IP67 |
| reference code according to IEC 81346-2 | B |
| active principle | mechanical |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.22 kg |
| length of the sensor | 85 mm |
| width of the sensor | 56 mm |
| during operation | -30 ... +85 °C |
| explosion protection category for dust | none |
| design of the switching contact | mechanical |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| design of the housing | block, wide |
| material of the enclosure | metal |
| coating of the enclosure | painted |
| design of the housing according to standard | No |
| design of the actuating element | plunger |
| shape of the switch head | rounded |
| outer diameter of the switch head | 6 mm |
| design of the switching function | positive opening |
| circuit principle | snap-action contacts |
| number of switching contacts safety-related | 1 |
| fastening method | screw fixing |
| type of electrical connection | screw terminal |
| design of the interface for safety-related communication | without |
| design of the interface | without |
