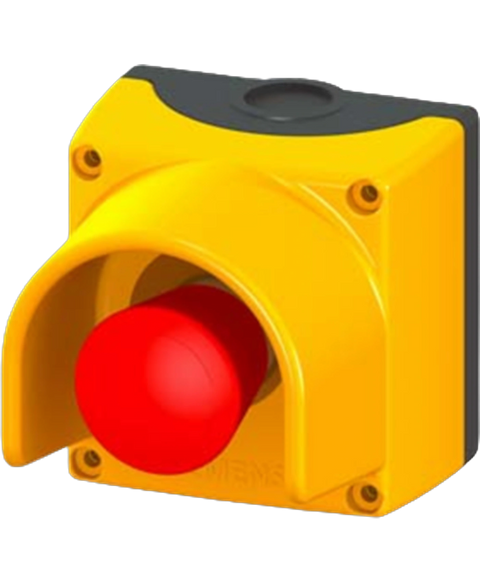

Siemens 3SB38010DF3
ENCLOSURE FOR COMMAND DEVICES, 22MM, ROUND, ENCLOSURE MATERIAL PLASTIC, YELLOW ENCLOSURE TOP PART, WITH PROTECTIVE COLLAR, 1 COMMAND POINT, A=EM. STOP MUSHROOM PUSHB. RED, 40MM, ROTATE-TO-UNLATCH, 1NC, SCREW TERMINAL, FLOOR MOUNTING, TOP AND BOTTOM 1 X M20 EACH !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1801-0NA00-2AC2<
This Siemens 3SB38010DF3 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL27085327834.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| design of the housing | Enclosure for command and signaling devices with standard equipment |
| shape of the enclosure front | Square |
| material of the enclosure | plastic |
| number of command points | 1 |
| product component protective collar | Yes |
| color of the enclosure top part | yellow |
| as a kit | No |
| pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical / horizontal |
| design of the actuating element | Emergency stop mushroom pushbutton |
| lockout | No |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| type of unlocking device | rotate-to-unlatch mechanism |
| product component front ring | No |
| material of the holder | Plastic |
| number of lampholders | 0 |
| number of switching elements | 1 |
| positive opening | Yes |
| EMERGENCY OFF function | Yes |
| EMERGENCY STOP function | Yes |
| light source | No |
| stand/pedestal | No |
| type of voltage of the operating voltage | AC/DC |
| protection class IP | IP65 |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (Date) | 07/01/2006 |
| — at 50 Hz rated value | 5 ... 400 V400 V |
| — at 60 Hz rated value | 5 ... 300 V300 V |
| at DC rated value | 5 ... 230 V230 V |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| at 24 V rated value | 10 A6 A3 A |
| at 48 V rated value | 10 A6 A5 A1.5 A |
| at 110 V rated value | 10 A6 A2.5 A0.7 A |
| at 230 V rated value | 10 A6 A1 A0.3 A |
| at 400 V rated value | 10 A3 A |
| type of electrical connection on enclosure | Cable routing above, below / left, right, each 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| with low demand rate according to SN 31920 | 20 % |
| with high demand rate according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| during operation | -25 ... +70 °C |
| during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3K6 |
| fastening method of contact blocks, socket, and accessories | Floor mounting |
| height | 85 mm |
| width | 85 mm |
| depth | 106 mm |
| shape of the installation opening | round |
| mounting diameter | 22 mm |
| number of labels | 0 |
| number of backing plates | 0 |
| product component holder for 3 switching elements | No |
