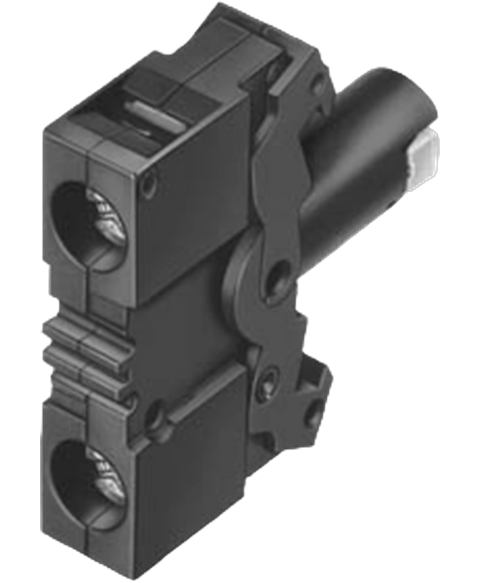

Siemens 3SB34001PC
ACTUATOR-,INDICATOR COMPONENT WITH INTEGRATED LED 24V AC,DC LAMP HOLDER SCREW TERMINAL GREEN !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1401-1BB40-1AA0<
This Siemens 3SB34001PC is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL27085360228.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | lampholder |
| socket design | integrated |
| number of lampholders | 1 |
| product function positive opening | No |
| diode | Yes |
| lamp transformer | No |
| light source | Yes |
| series resistor | No |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| of the operating voltage | AC/DC |
| surge voltage resistance rated value | 4 kV |
| of the enclosure | IP40 |
| of the terminal | IP20 |
| reference code according to IEC 81346-2 | P |
| Substance Prohibitance (Date) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 |
| — at 50 Hz rated value | 21.6 ... 26.4 V24 V |
| — at 60 Hz rated value | 21.6 ... 26.4 V24 V |
| at DC rated value | 21.6 ... 26.4 V24 V |
| type of voltage of the supply voltage of the light source | AC/DC |
| at 50 Hz rated value | 24 V |
| at 60 Hz rated value | 24 V |
| supply voltage 1 of the light source at DC rated value | 24 V |
| relative negative tolerance of the supply voltage | -15 % |
| relative positive tolerance of the supply voltage | 10 % |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| consumed current for rated value of supply voltage maximum | 18 mA |
| type of electrical connection | screw-type terminals |
| — solid | 2x (1.0 ... 1.5 mm²) |
| — solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (18 ... 14) |
| tightening torque for auxiliary contacts with screw-type terminals | 0.8 N·m |
| type of light source | LED |
| color of the light source | green |
| during operation | -25 ... +70 °C |
| during storage | -25 ... +80 °C |
| fastening method | front mounting |
| height | 36 mm |
| width | 10 mm |
| depth | 20 mm |
