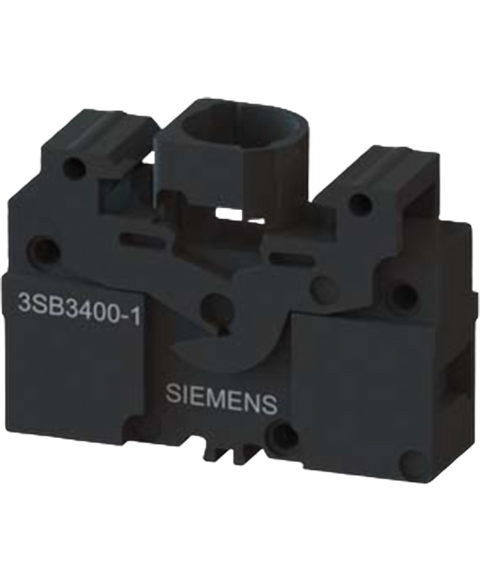

Siemens 3SB34001A
ACTUATOR-,INDICATOR COMPONENT LAMP HOLDER BA 9S WITHOUT LAMP SCREW TERMINAL RATED VOLTAGE ACC.TO LAMP !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor
This Siemens 3SB34001A is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL27085365632.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | lampholder |
| socket design | BA 9s |
| number of lampholders | 1 |
| product function positive opening | No |
| diode | No |
| lamp transformer | No |
| light source | No |
| series resistor | No |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| of the operating voltage | AC/DC |
| surge voltage resistance rated value | 4 kV |
| of the enclosure | IP40 |
| of the terminal | IP20 |
| with screwed-in light source | IP00 |
| reference code according to IEC 81346-2 | P |
| Substance Prohibitance (Date) | 07/01/2006 |
| — at 50 Hz rated value | 6 ... 230 V |
| — at 60 Hz rated value | 6 ... 230 V |
| at DC rated value | 6 ... 230 V |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| type of electrical connection | screw-type terminals |
| — solid | 2x (1.0 ... 1.5 mm²) |
| — solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (18 ... 14) |
| tightening torque for auxiliary contacts with screw-type terminals | 0.8 N·m |
| during operation | -25 ... +60 °C |
| during storage | -25 ... +80 °C |
| fastening method | front mounting |
| height | 36.5 mm |
| width | 10 mm |
| depth | 20 mm |
