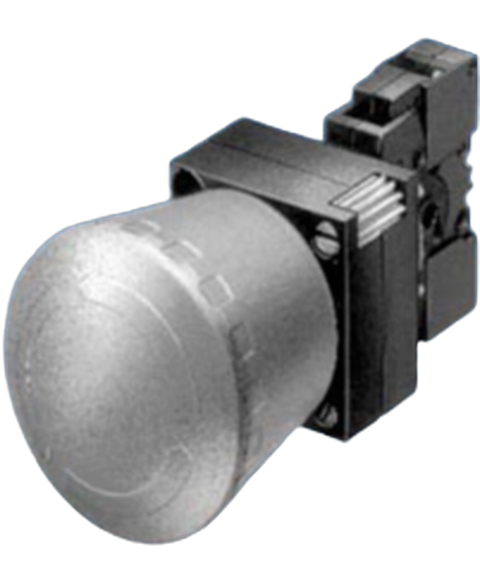

Siemens 3SB32031HA20
22MM PLASTIC ROUND COMPLETE UNIT COMBINATION: EMERGEN.-STOP MUSHR.PUSHB. 40MM LATCH.W. ROT.-TO-UNLATCH MECH. WITH YELLOW BACKING PLATE SCREW TERMINAL, 1NC WITH HOLDER RED INSCRIPTION: NOT-HALT !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is >>3SU1100-1HB20-1CH0<
This Siemens 3SB32031HA20 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL27085394333.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| design of the product | Complete unit round with positive latching in accordance with ISO 13850 |
| shape of the enclosure front | round |
| material of the enclosure | plastic |
| number of command points | 1 |
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| principle of operation of the actuating element | latching |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| type of unlocking device | rotate-to-unlatch mechanism |
| number of switching positions | 2 |
| product component front ring | No |
| material of the holder | Plastic |
| number of lampholders | 0 |
| number of switching elements | 1 |
| positive opening | Yes |
| EMERGENCY STOP function | Yes |
| product component light source | No |
| type of voltage of the operating voltage | AC/DC |
| protection class IP | IP66 |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5g |
| operating frequency maximum | 1 000 1/h |
| mechanical service life (operating cycles) typical | 300 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (Date) | 07/01/2006 |
| operating voltage rated value | 5 ... 400 V |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| at 24 V rated value | 10 A6 A3 A |
| at 48 V rated value | 10 A6 A5 A1.5 A |
| at 110 V rated value | 10 A6 A2.5 A0.7 A |
| at 230 V rated value | 10 A6 A1 A0.3 A |
| at 400 V rated value | 10 A3 A |
| type of electrical connection | screw-type terminals |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| with low demand rate according to SN 31920 | 20 % |
| with high demand rate according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| during operation | -25 ... +70 °C |
| during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3K6 |
| fastening method | front mounting |
| shape of the installation opening | round |
| mounting diameter | 22 mm |
| mounting height | 49 mm |
| installation width | 40.5 mm |
| installation depth | 49 mm |
| marking of backing plate | Yellow backing plate, inscription "NOT-HALT" |
| product component holder for 3 switching elements | No |
