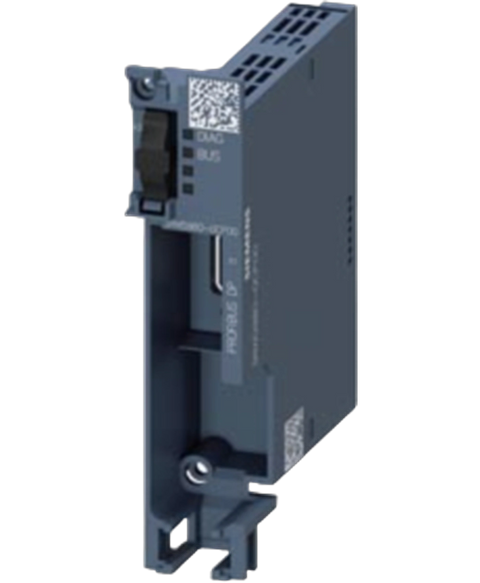

Siemens 3RW59800CP00
communication module PROFIBUS
This Siemens 3RW59800CP00 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters > Accessories range and is referenced internally as PartLogic SKU PL27085587350.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product category | Communication modules |
| product designation | Communication module |
| design of the product | PROFIBUS |
| product type designation | 3RW59 |
| reference code according to IEC 81346-2 | A |
| Substance Prohibitance (Date) | 02/15/2018 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 |
| Net Weight | 0.133 kg |
| mounting position | any |
| fastening method | screw fixing |
| height | 126 mm |
| width | 28 mm |
| depth | 82 mm |
| weight without packaging | 0.1 kg |
| installation altitude at height above sea level maximum | 5 000 m |
| during operation | -25 ... +60 °C; observe derating of basic unit above 40 °C |
| during storage and transport | -40 ... +80 °C |
| during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m) |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
