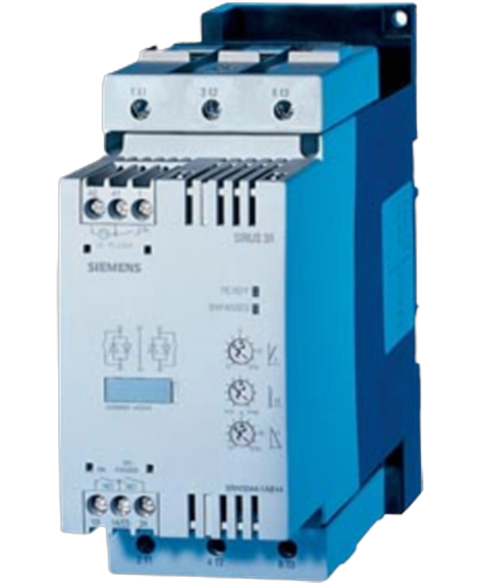

Siemens 3RW3044-1AB14
The 3RW3044-1AB14 Soft Starter Drive from Siemens is designed for various AC voltage applications. It can function within a rated operational voltage range of 200 to 480 VAC and supports a maximum current of 54 amps.
This Siemens 3RW3044-1AB14 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26931801329.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RW3044-1AB14 |
| EAN | 4011209398757 |
| Weight | 2.00 lbs (0.91 kg) |
| Name | Soft Starter Drive |
| Rated Operational Voltage | 200 to 480 VAC |
| Rated Current | 54 Amps |
| Ambient Temperature | -25 to +60°C |
| Soft Starting/Stopping | Available |
| Voltage Ramp | Available |
| Starting/Stopping Voltage | 40 to 100% |
| Starting and Stopping Time | 0 to 20 seconds |
| Motor Output (400V/460V) in kW (standard circuit) | 30 kW |
| Motor Output (400V/460V) in HP (standard circuit) | 40 HP |
| Integrated Bypass Contact System | Available |
| Number of Parameter Sets | 1 |
| IP Rating | IP00-Open |
| Screw Terminals | Yes |
| UL/CSA Standards | Yes |
| Brand | Siemens |
