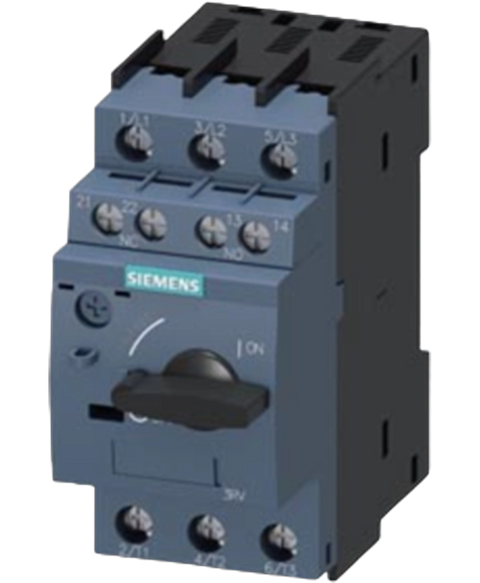

Siemens 3RV60111HA15
Circuit breaker 8 A A-release 5.5...8 A, N-release 104 A, for motor protection, class 10, screw connection, standard switching capacity w. transverse AUX. switch 1 NO + 1 NC
This Siemens 3RV60111HA15 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers range and is referenced internally as PartLogic SKU PL27085703813.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | Circuit breaker |
| design of the product | for motor protection |
| product type designation | 3RV6 |
| size of the circuit-breaker | S00 |
| power loss [W] total typical | 7 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 3.1 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | 25g / 11 ms |
| Substance Prohibitance (Date) | 05/01/2012 |
| Net Weight | 364 g |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -20 ... +60 °C |
| during transport | -50 ... +80 °C |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 5.5 ... 8 A |
| rated value | 690 V |
| at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 8 A |
| operational current at AC-3 at 400 V rated value | 8 A |
| operating frequency at AC-3 maximum | 15 1/h |
| design of the auxiliary switch | transverse |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| maximum short-circuit current breaking capacity (Icu) at AC at 400 V rated value | 100 kA |
| operating short-circuit current breaking capacity (Ics) at AC at 400 V rated value | 100 kA |
| response value current of instantaneous short-circuit trip unit | 104 A |
| product function short circuit protection | Yes |
| design of the short-circuit trip | magnetic |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| height | 97 mm |
| width | 45 mm |
| depth | 97 mm |
| forwards | 0 mm |
| backwards | 0 mm |
| upwards | 50 mm |
| at the side | 30 mm |
| downwards | 50 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| solid or stranded | 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| for main contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| for auxiliary contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
