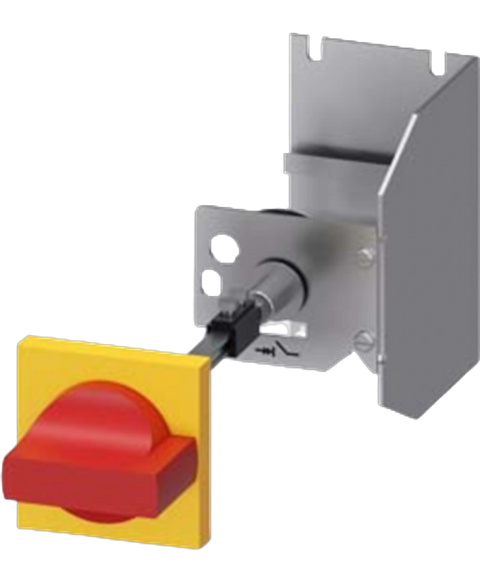

Siemens 3RV29262C
Door-coupling rotary operating mechanism for circuit breaker Size S00,S0 Handle emergency switching-off new design
This Siemens 3RV29262C is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL27085723933.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | door-coupling rotary operating mechanism for heavy-duty operating conditions |
| design of the product | EMERGENCY OFF door-coupling rotary operating mechanism |
| suitability for use | circuit-breakers S0 |
| certificate of suitability | CE / UL / CSA |
| size of the circuit-breaker | S0 |
| product feature can be locked into OFF position | Yes |
| operating frequency maximum | 15 1/h |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 1.033 kg |
| during operation | -20 ... +70 °C |
| during storage | -50 ... +80 °C |
| product feature interlock | Yes |
| color of the actuating element | red / yellow |
| mounting position | any |
| fastening method | screw fixing |
| height | 75 mm |
| width | 75 mm |
| depth | 78 mm |
| length | 300 mm |
| diameter | 40 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — at the side | 0 mm |
| — downwards | 0 mm |
