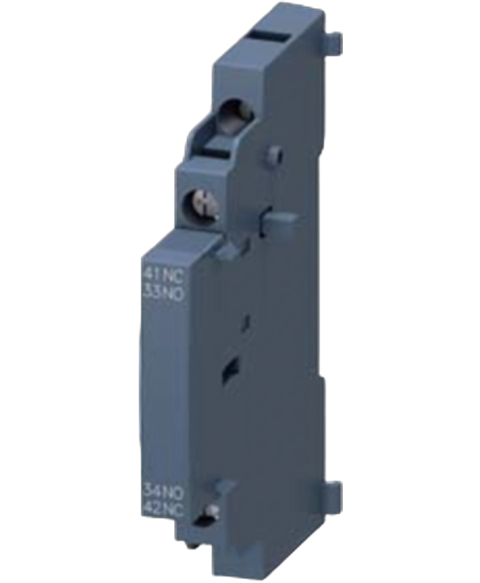

Siemens 3RV2901-1A
The Siemens 3RV2901-1A is an auxiliary switch designed for flexible control applications. It features two contacts, with one normally open (NO) contact and one normally closed (NC) contact, ensuring various operational options.
This Siemens 3RV2901-1A is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805557808.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product category | Auxiliary switch |
| product designation | auxiliary switch |
| design of the product | lateral auxiliary switches |
| product type designation | 3RV29 |
| certificate of suitability | CE / UL / CSA / CCC |
| size of the circuit-breaker | S00, S0, S2, S3 |
| display version LED | No |
| insulation voltage rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| according to IEC 60529 | IP20 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 10/01/2009 |
| Net Weight | 44 g |
| number of NC contacts for auxiliary contacts instantaneous contact | 1 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| operational current at AC-15 at 690 V rated value | 1 A |
| at 24 V | 10 A6 A2 A |
| at 230 V | 10 A4 A |
| at 400 V | 10 A3 A |
| at 690 V | 10 A |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| at 110 V | 0.5 A |
| at 220 V | 0.25 A |
| at 250 V | 0.25 A |
| during operation | -20 ... +60 °C |
| during storage | -50 ... +80 °C |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| fastening method | plug-in fixing |
| height | 90 mm |
| width | 9.5 mm |
| depth | 70 mm |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| solid or stranded | 0.5 ... 2.5 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 14) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
| global warming potential [CO2 eq] / during manufacturing | 0.238 kg |
| global warming potential [CO2 eq] / during operation | 4.2 kg |
| global warming potential [CO2 eq] / after end of life | 0.00529 kg |
| global warming potential [CO2 eq] / total | 4.44 kg |
