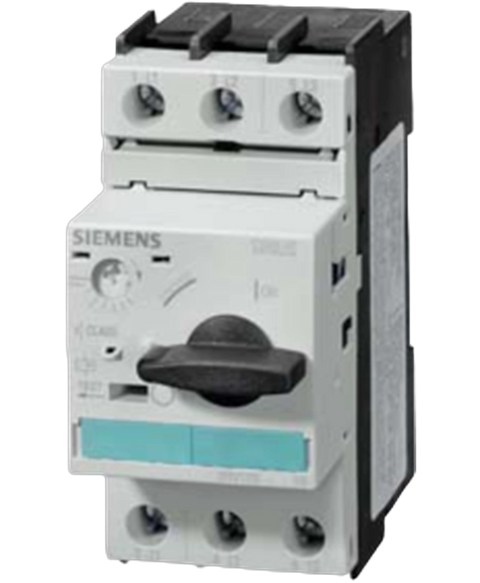

Siemens 3RV1021-4DA10
The Siemens 3RV1021-4DA10 is a circuit breaker primarily intended for motor protection. Featuring a rated operational voltage of 690 volts, this device manages a rated current of 25 amperes at 400 volts.
This Siemens 3RV1021-4DA10 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Circuit breakers range and is referenced internally as PartLogic SKU PL26801429907.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RV1021-4DA10 |
| UPC | 754554409313 |
| Weight | 0.75 lbs (0.34 kg) |
| Product Name | Circuit Breaker |
| Purpose | Motor protection |
| Power Loss in Total | 8W |
| Rated Surge Voltage Resistance | 6000V |
| Protection Class IP | IP20 |
| Service Life of Mechanical Contacts | 100,000 typ. (switching cycles) |
| Altitude | 2000m above sea level |
| Ambient Temperature During Operation | -20 to 60°C |
| Ambient Temperature During Storage | -50 to 80°C |
| Ambient Temperature During Transport | -50 to 80°C |
| Rated Operational Voltage | 690V |
| Voltage Phase | 3 phase, AC voltage |
| Rated Current at 400V | 25A |
| Rated Power at 400V | 11 kW |
| Brand | Siemens |
