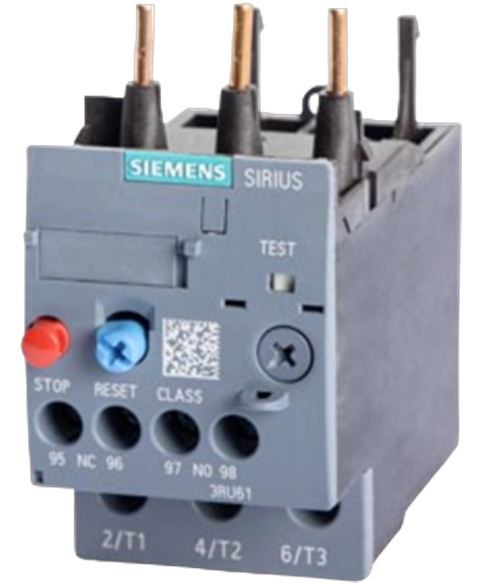

Siemens 3RU61264FB0
This Siemens 3RU61264FB0 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Overload relays range and is referenced internally as PartLogic SKU PL27085883942.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product designation | Thermal overload relay |
| product type designation | 3RU6 |
| size of contactor can be combined company-specific | S0 |
| power loss [W] total typical | 7.5 W |
| power loss [W] for rated value of the current at AC in hot operating state | 9.6 W |
| per pole | 3.2 W |
| type of calculation of power loss depending on pole | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | 8g / 11 ms |
| Substance Prohibitance (Date) | 05/01/2012 |
| Net Weight | 0.16 kg |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -40 ... +70 °C |
| during transport | -55 ... +80 °C |
| relative humidity during operation | 0 ... 90 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 34 ... 40 A |
| operating voltage rated value | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 40 A |
| at 24 V | 3 A2 A |
| at 230 V | 2 A |
| at 110 V | 0.22 A |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| mounting position | any |
| fastening method | Contactor mounting |
| height | 85 mm |
| width | 45 mm |
| depth | 85 mm |
| required spacing for grounded parts at the side | 6 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| solid or stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| tightening torque for main contacts with screw-type terminals | 2 ... 2.5 N·m |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
