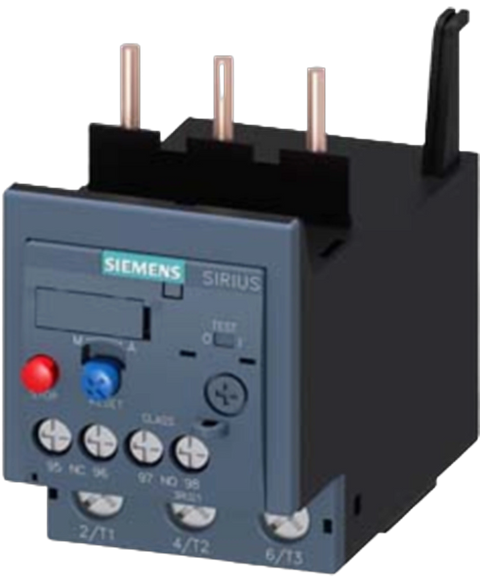

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RU2136-4EB0
Siemens 3RU21364EB0 overload relay, 22-32A.
This Siemens 3RU2136-4EB0 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Overload relays range and is referenced internally as PartLogic SKU PL26805597384.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$389.07
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | thermal overload relay |
| product type designation | 3RU2 |
| size of overload relay | S2 |
| size of contactor can be combined company-specific | S2 |
| power loss [W] for rated value of the current at AC in hot operating state | 13.8 W |
| per pole | 4.6 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| in networks with ungrounded star point between auxiliary and auxiliary circuit | 415 V |
| in networks with grounded star point between auxiliary and auxiliary circuit | 415 V |
| in networks with ungrounded star point between main and auxiliary circuit | 690 V |
| in networks with grounded star point between main and auxiliary circuit | 690 V |
| shock resistance according to IEC 60068-2-27 | 8g / 11 ms |
| with automatic reset typical | 10 min |
| with remote-reset | 10 min |
| with manual reset | 10 min |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (Date) | 10/15/2014 |
| SVHC substance name | Lead - 7439-92-1 |
| Net Weight | 318 g |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -40 ... +70 °C |
| during storage | -55 ... +80 °C |
| during transport | -55 ... +80 °C |
| temperature compensation | -40 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 22 ... 32 A |
| rated value | 690 V |
| at AC-3e rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 32 A |
| operational current at AC-3e at 400 V rated value | 32 A |
| — at 400 V rated value | 15 kW |
| — at 500 V rated value | 18.5 kW |
| — at 690 V rated value | 30 kW |
| design of the auxiliary switch | integrated |
| number of NC contacts for auxiliary contacts | 1 |
| note | for contactor disconnectionfor message "Tripped" |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| at 24 V | 3 A2 A |
| at 110 V | 3 A0.22 A |
| at 120 V | 3 A |
| at 125 V | 3 A0.22 A |
| at 230 V | 2 A |
| at 400 V | 1 A |
| at 690 V | 0.75 A |
| at 60 V | 0.3 A |
| at 220 V | 0.11 A |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary switch required | 6A (SCC less than equal to 0.5 kA; U less than equal to 260V) |
| contact rating of auxiliary contacts according to UL | B600 / R300 |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| at 480 V rated value | 32 A |
| at 600 V rated value | 32 A |
| for short-circuit protection of the auxiliary switch required | fuse gG: 6 A, quick: 10 A |
| mounting position | for mounting on contactors: with a vertical mounting plane +/-135° rotatable & +/- 22.5° tiltable, stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual |
| fastening method | Contactor mounting |
| height | 90 mm |
| width | 55 mm |
| depth | 105 mm |
| product component removable terminal for auxiliary and control circuit | No |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| — solid or stranded | 2x (1 ... 35 mm²), 1x (1 ... 50 mm²)2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (1 ... 25 mm²), 1x (1 ... 35 mm²)2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for main contacts | 2x (18 ... 2), 1x (18 ... 1) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| for main contacts with screw-type terminals | 3 ... 4.5 N·m |
| for auxiliary contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| design of screwdriver shaft | Diameter 5 ... 6 mm |
| size of the screwdriver tip | Pozidriv PZ 2 |
| for main contacts | M6 |
| of the auxiliary and control contacts | M3 |
| for proof test interval or service life according to IEC 61508 | 20 a |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Slide switch |
| global warming potential [CO2 eq] / during manufacturing | 1.8 kg |
| global warming potential [CO2 eq] / during sales | 0.0825 kg |
| global warming potential [CO2 eq] / during operation | 107 kg |
| global warming potential [CO2 eq] / after end of life | -0.0625 kg |
| global warming potential [CO2 eq] / total | 108 kg |
