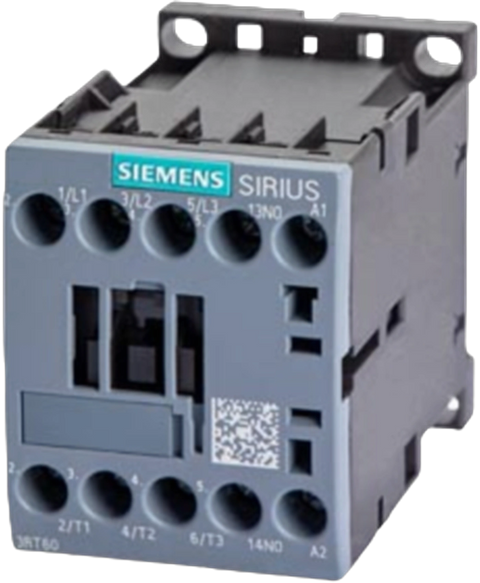

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RT60171AN21
This Siemens 3RT60171AN21 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27085980325.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$96.55
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Power contactor |
| product type designation | 3RT6 |
| size of contactor | S00 |
| product extension auxiliary switch | Yes |
| at AC in hot operating state per pole | 1.24 W |
| without load current share typical | 1.42 W |
| type of calculation of power loss depending on pole | quadratic |
| insulation voltage rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| at AC | 7,3g / 5 ms, 4,7g / 10 ms11,4g / 5 ms, 7,3g / 10 ms10 000 1/h |
| of contactor typical | 30 000 000 |
| of the contactor with added auxiliary switch block typical | 10 000 000 |
| Substance Prohibitance (Date) | 05/01/2012 |
| Net Weight | 0.238 kg |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| at AC-3 rated value maximum | 690 V |
| at AC-3e rated value maximum | 690 V |
| — at ambient temperature 40 °C rated value | 22 A |
| — at ambient temperature 60 °C rated value | 20 A |
| — at 400 V rated value | 12 A5.5 kW |
| — at 690 V rated value | 6.7 A5.5 kW |
| at 60 °C minimum permissible | 2.5 mm² |
| at 40 °C minimum permissible | 4 mm² |
| at 400 V rated value | 4.1 A2 kW3 A |
| at 690 V rated value | 3.3 A2.5 kW1 A |
| — at 230 V rated value | 7.5 kW3 kW |
| — at 230 V at 60 °C rated value | 7.5 kW |
| — at 400 V at 60 °C rated value | 13 kW |
| — at 690 V at 60 °C rated value | 22 kW |
| at AC-1 maximum | 1 000 1/h |
| at AC-3 maximum | 750 1/h |
| at AC-3e maximum | 750 1/h |
| at AC-4 maximum | 250 1/h |
| type of voltage of the control supply voltage | AC |
| at 50 Hz rated value | 220 V |
| at 60 Hz rated value | 220 V |
| at 50 Hz | 0.8 ... 1.137 VA0.85.7 VA0.25 |
| at 60 Hz | 0.85 ... 1.143 VA0.86.5 VA0.25 |
| number of NC contacts for auxiliary contacts instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| operational current at AC-12 maximum | 10 A |
| at 230 V rated value | 10 A |
| at 24 V rated value | 6 A |
| at 110 V rated value | 3 A1 A |
| at 220 V rated value | 1 A0.3 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| yielded mechanical performance [hp] for 3-phase AC motor at 460/480 V rated value | 7.5 hp |
| — with type of coordination 1 required | gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 35 A |
| — with type of coordination 2 required | gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 20 A |
| for short-circuit protection of the auxiliary switch required | fuse gL/gG: 10 A |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method side-by-side mounting | Yes |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| height | 57.5 mm |
| width | 45 mm |
| depth | 73 mm |
| — at the side | 0 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| product function mirror contact according to IEC 60947-4-1 | Yes |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
