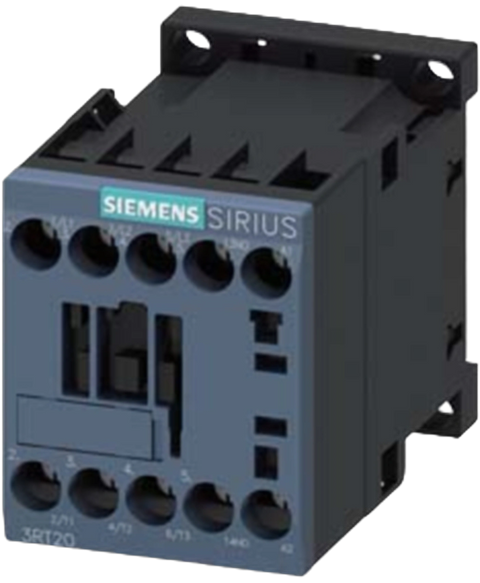

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RT2015-1AP01
Siemens 3RT2015-1AP01 power contactor, 7A, 230VAC coil.
This Siemens 3RT2015-1AP01 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805664388.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$85.19
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Power contactor |
| product type designation | 3RT2 |
| size of contactor | S00 |
| function module for communication | No |
| auxiliary switch | Yes |
| at AC in hot operating state | 0.6 W |
| at AC in hot operating state per pole | 0.2 W |
| without load current share typical | 1.1 W |
| type of calculation of power loss depending on pole | quadratic |
| of main circuit with degree of pollution 3 rated value | 690 V |
| of auxiliary circuit with degree of pollution 3 rated value | 690 V |
| of main circuit rated value | 6 kV |
| of auxiliary circuit rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| at AC | 6,7g / 5 ms, 4,2g / 10 ms10,5g / 5 ms, 6,6g / 10 ms10 000 1/h9 ... 35 ms4 ... 15 ms |
| of contactor typical | 30 000 000 |
| of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 10/01/2009 |
| Net Weight | 0.231 kg |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| at AC-3 rated value maximum | 690 V |
| at AC-3e rated value maximum | 690 V |
| at AC-1 at 400 V at ambient temperature 40 °C rated value | 18 A |
| — up to 690 V at ambient temperature 40 °C rated value | 18 A |
| — up to 690 V at ambient temperature 60 °C rated value | 16 A |
| — at 400 V rated value | 7 A3 kW |
| — at 500 V rated value | 6 A3 kW |
| — at 690 V rated value | 4.9 A4 kW |
| at AC-4 at 400 V rated value | 6.5 A |
| at AC-5a up to 690 V rated value | 15.8 A |
| at AC-5b up to 400 V rated value | 5.8 A |
| — up to 230 V for current peak value n=20 rated value | 4 A |
| — up to 400 V for current peak value n=20 rated value | 4 A |
| — up to 500 V for current peak value n=20 rated value | 3.8 A |
| — up to 690 V for current peak value n=20 rated value | 3.6 A |
| — up to 230 V for current peak value n=30 rated value | 2.7 A |
| — up to 400 V for current peak value n=30 rated value | 2.7 A |
| — up to 500 V for current peak value n=30 rated value | 2.5 A |
| — up to 690 V for current peak value n=30 rated value | 2.4 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 2.5 mm² |
| at 400 V rated value | 2.6 A1.15 kW3 A |
| at 690 V rated value | 1.8 A1.15 kW1 A |
| — at 24 V rated value | 15 A |
| — at 60 V rated value | 15 A0.35 A3.5 A |
| — at 110 V rated value | 1.5 A8.4 A15 A0.1 A0.25 A |
| — at 220 V rated value | 0.6 A1.2 A15 A |
| — at 440 V rated value | 0.42 A0.6 A0.9 A0.14 A |
| — at 600 V rated value | 0.42 A0.5 A0.7 A0.14 A |
| — at 230 V rated value | 1.5 kW0.75 hp |
| up to 230 V for current peak value n=20 rated value | 1.5 kVA |
| up to 400 V for current peak value n=20 rated value | 2.7 kVA |
| up to 500 V for current peak value n=20 rated value | 3.3 kVA |
| up to 690 V for current peak value n=20 rated value | 4.3 kVA |
| up to 230 V for current peak value n=30 rated value | 1 kVA |
| up to 400 V for current peak value n=30 rated value | 1.8 kVA |
| up to 500 V for current peak value n=30 rated value | 2.2 kVA |
| up to 690 V for current peak value n=30 rated value | 2.9 kVA |
| limited to 1 s switching at zero current maximum | 120 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 5 s switching at zero current maximum | 86 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 10 s switching at zero current maximum | 67 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 30 s switching at zero current maximum | 52 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 60 s switching at zero current maximum | 43 A; Use minimum cross-section acc. to AC-1 rated value |
| at AC-1 maximum | 1 000 1/h |
| at AC-2 maximum | 750 1/h |
| at AC-3 maximum | 750 1/h |
| — maximum | 750 1/h |
| at AC-4 maximum | 250 1/h |
| type of voltage of the control supply voltage | AC |
| at 50 Hz rated value | 230 V |
| at 60 Hz rated value | 230 V |
| at 50 Hz | 0.8 ... 1.127 VA0.84.2 VA0.25 |
| at 60 Hz | 0.85 ... 1.124.3 VA0.753.3 VA0.25 |
| arcing time | 10 ... 15 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
| number of NC contacts for auxiliary contacts instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| operational current at AC-12 maximum | 10 A |
| at 230 V rated value | 10 A |
| at 500 V rated value | 2 A |
| at 24 V rated value | 10 A |
| at 48 V rated value | 6 A2 A |
| at 60 V rated value | 6 A2 A |
| at 110 V rated value | 3 A1 A |
| at 125 V rated value | 2 A0.9 A |
| at 220 V rated value | 1 A0.3 A |
| at 600 V rated value | 0.15 A0.1 A6.1 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| at 480 V rated value | 4.8 A |
| — at 110/120 V rated value | 0.25 hp |
| — at 200/208 V rated value | 1.5 hp |
| — at 220/230 V rated value | 2 hp |
| — at 460/480 V rated value | 3 hp |
| — at 575/600 V rated value | 5 hp |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V | C characteristic: 10 A; 0.4 kA |
| — with type of coordination 1 required | gG: 35 A (690 V,100 kA), aM: 20 A (690 V,100 kA), BS88: 35 A (415 V,80 kA) |
| — with type of coordination 2 required | gG: 20 A (690 V, 100 kA), aM: 16 A (690 V, 100 kA), BS88: 20 A (415 V, 80 kA) |
| for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method side-by-side mounting | Yes |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| height | 58 mm |
| width | 45 mm |
| depth | 73 mm |
| — forwards | 10 mm |
| — upwards | 10 mm |
| — downwards | 10 mm |
| — at the side | 0 mm6 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| at contactor for auxiliary contacts | Screw-type terminals |
| of magnet coil | Screw-type terminals |
| — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| — solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for main contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| solid | 0.5 ... 4 mm² |
| stranded | 0.5 ... 4 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| solid or stranded | 0.5 ... 4 mm² |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| AWG number as coded connectable conductor cross section for main contacts | 20 ... 12 |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 12 |
| mirror contact according to IEC 60947-4-1 | Yes; with 3RH29 |
| positively driven operation according to IEC 60947-5-1 | No |
| suitable for safety function | Yes |
| suitability for use safety-related switching OFF | Yes |
| service life maximum | 20 a |
| test wear-related service life necessary | Yes |
| with low demand rate according to SN 31920 | 40 % |
| with high demand rate according to SN 31920 | 73 % |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
| overdimensioning according to ISO 13849-2 necessary | Yes |
| safety device type according to IEC 61508-2 | Type A |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| global warming potential [CO2 eq] / during manufacturing | 1.18 kg |
| global warming potential [CO2 eq] / during operation | 38.5 kg |
| global warming potential [CO2 eq] / after end of life | -0.155 kg |
| global warming potential [CO2 eq] / total | 39.6 kg |
