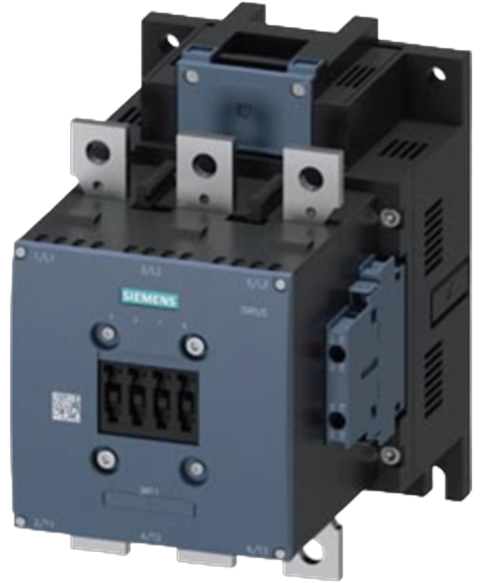

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RT1066-6AV36
Siemens 3RT1066-6AV36 Contactor, S10, 300A, 380-420VUC, 3-Pole
This Siemens 3RT1066-6AV36 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805536016.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,831.79
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | Power contactor |
| product type designation | 3RT1 |
| size of contactor | S10 |
| function module for communication | No |
| auxiliary switch | Yes |
| at AC in hot operating state | 66 W |
| at AC in hot operating state per pole | 22 W |
| without load current share typical | 7.4 W |
| type of calculation of power loss depending on pole | quadratic |
| of main circuit with degree of pollution 3 rated value | 1 000 V |
| of auxiliary circuit with degree of pollution 3 rated value | 500 V |
| of main circuit rated value | 8 kV |
| of auxiliary circuit rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 690 V |
| at AC | 8,5g / 5 ms, 4,2g / 10 ms13,4g / 5 ms, 6,5g / 10 ms2 000 1/h30 ... 95 ms40 ... 80 ms |
| at DC | 8,5g / 5 ms, 4,2g / 10 ms13,4g / 5 ms, 6,5g / 10 ms2 000 1/h30 ... 95 ms40 ... 80 ms |
| of contactor typical | 10 000 000 |
| of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 |
| Net Weight | 6.636 kg |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| at AC-3 rated value maximum | 1 000 V |
| at AC-3e rated value maximum | 1 000 V |
| at AC-1 at 400 V at ambient temperature 40 °C rated value | 330 A |
| — up to 690 V at ambient temperature 40 °C rated value | 330 A |
| — up to 690 V at ambient temperature 60 °C rated value | 300 A |
| — up to 1000 V at ambient temperature 40 °C rated value | 150 A |
| — up to 1000 V at ambient temperature 60 °C rated value | 150 A |
| — at 400 V rated value | 300 A160 kW |
| — at 500 V rated value | 300 A200 kW |
| — at 690 V rated value | 280 A250 kW |
| — at 1000 V rated value | 95 A132 kW |
| at AC-4 at 400 V rated value | 280 A |
| at AC-5a up to 690 V rated value | 290 A |
| at AC-5b up to 400 V rated value | 249 A |
| — up to 230 V for current peak value n=20 rated value | 292 A |
| — up to 400 V for current peak value n=20 rated value | 292 A |
| — up to 500 V for current peak value n=20 rated value | 292 A |
| — up to 690 V for current peak value n=20 rated value | 280 A |
| — up to 1000 V for current peak value n=20 rated value | 95 A |
| — up to 230 V for current peak value n=30 rated value | 195 A |
| — up to 400 V for current peak value n=30 rated value | 195 A |
| — up to 500 V for current peak value n=30 rated value | 195 A |
| — up to 690 V for current peak value n=30 rated value | 195 A |
| — up to 1000 V for current peak value n=30 rated value | 95 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 185 mm² |
| at 400 V rated value | 125 A71 kW3 A |
| at 690 V rated value | 115 A112 kW1 A |
| — at 24 V rated value | 300 A |
| — at 60 V rated value | 300 A11 A |
| — at 110 V rated value | 33 A300 A |
| — at 220 V rated value | 3.8 A300 A0.6 A2.5 A |
| — at 440 V rated value | 0.9 A4 A11 A0.18 A0.65 A1.4 A |
| — at 600 V rated value | 0.6 A2 A5.2 A0.125 A0.37 A0.75 A |
| — at 230 V rated value | 90 kW |
| up to 230 V for current peak value n=20 rated value | 110 kVA |
| up to 400 V for current peak value n=20 rated value | 200 kVA |
| up to 500 V for current peak value n=20 rated value | 250 kVA |
| up to 690 V for current peak value n=20 rated value | 330 kVA |
| up to 1000 V for current peak value n=20 rated value | 160 kVA |
| up to 230 V for current peak value n=30 rated value | 70 kVA |
| up to 400 V for current peak value n=30 rated value | 130 kVA |
| up to 500 V for current peak value n=30 rated value | 160 kVA |
| up to 690 V for current peak value n=30 rated value | 230 kVA |
| up to 1000 V for current peak value n=30 rated value | 160 kVA |
| limited to 1 s switching at zero current maximum | 5 524 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 5 s switching at zero current maximum | 4 579 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 10 s switching at zero current maximum | 3 153 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 30 s switching at zero current maximum | 1 883 A; Use minimum cross-section acc. to AC-1 rated value |
| limited to 60 s switching at zero current maximum | 1 445 A; Use minimum cross-section acc. to AC-1 rated value |
| at AC-1 maximum | 750 1/h |
| at AC-2 maximum | 250 1/h |
| at AC-3 maximum | 500 1/h |
| — maximum | 500 1/h |
| at AC-4 maximum | 130 1/h |
| type of voltage of the control supply voltage | AC/DC |
| at 50 Hz rated value | 380 ... 420 V |
| at 60 Hz rated value | 380 ... 420 V |
| control supply voltage at DC rated value | 380 ... 420 V |
| initial value | 0.8 |
| full-scale value | 1.1 |
| at 50 Hz | 0.8 ... 1.1590 VA0.9 |
| at 60 Hz | 0.8 ... 1.1590 VA0.9 |
| design of the surge suppressor | with varistor |
| — at 50 Hz | 490 VA590 VA5.6 VA6.7 VA |
| — at 60 Hz | 490 VA590 VA5.6 VA6.7 VA |
| at minimum rated control supply voltage at DC | 6.1 VA |
| at maximum rated control supply voltage at DC | 7.4 VA |
| closing power of magnet coil at DC | 650 W |
| holding power of magnet coil at DC | 7.4 W |
| arcing time | 10 ... 15 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
| number of NC contacts for auxiliary contacts instantaneous contact | 2 |
| number of NO contacts for auxiliary contacts instantaneous contact | 2 |
| operational current at AC-12 maximum | 10 A |
| at 230 V rated value | 6 A |
| at 500 V rated value | 2 A |
| at 24 V rated value | 10 A |
| at 48 V rated value | 6 A2 A |
| at 60 V rated value | 6 A2 A |
| at 110 V rated value | 3 A1 A |
| at 125 V rated value | 2 A0.9 A |
| at 220 V rated value | 1 A0.3 A |
| at 600 V rated value | 0.15 A0.1 A289 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| at 480 V rated value | 302 A |
| — at 200/208 V rated value | 100 hp |
| — at 220/230 V rated value | 125 hp |
| — at 460/480 V rated value | 250 hp |
| — at 575/600 V rated value | 300 hp |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V | C characteristic: 10 A; 0.4 kA |
| — with type of coordination 1 required | gG: 500 A (690 V, 100 kA) |
| — with type of coordination 2 required | gG: 400 A (690 V, 100 kA), aM: 315 A (690 V, 50 kA), BS88: 400 A (415 V, 50 kA) |
| for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| mounting position | with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back |
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing |
| height | 210 mm |
| width | 145 mm |
| depth | 202 mm |
| — forwards | 20 mm |
| — upwards | 10 mm |
| — downwards | 10 mm |
| — at the side | 0 mm10 mm |
| for main current circuit | Connection bar |
| for auxiliary and control circuit | screw-type terminals |
| at contactor for auxiliary contacts | Screw-type terminals |
| of magnet coil | Screw-type terminals |
| width of connection bar | 25 mm |
| thickness of connection bar | 6 mm |
| diameter of holes | 11 mm |
| number of holes | 1 |
| for AWG cables for main contacts | 2/0 ... 500 kcmil |
| stranded | 70 ... 240 mm² |
| solid or stranded | 0.5 ... 4 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| — solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 1x 12 |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 18 ... 14 |
| mirror contact according to IEC 60947-4-1 | Yes |
| positively driven operation according to IEC 60947-5-1 | No |
| suitable for safety function | Yes |
| suitability for use safety-related switching OFF | Yes |
| service life maximum | 20 a |
| test wear-related service life necessary | Yes |
| with low demand rate according to SN 31920 | 40 % |
| with high demand rate according to SN 31920 | 73 % |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
| overdimensioning according to ISO 13849-2 necessary | Yes |
| safety device type according to IEC 61508-2 | Type A |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with box terminal/cover |
| global warming potential [CO2 eq] / during manufacturing | 31.5 kg |
| global warming potential [CO2 eq] / during sales | 2.6 kg |
| global warming potential [CO2 eq] / during operation | 521 kg |
| global warming potential [CO2 eq] / after end of life | -7.22 kg |
| global warming potential [CO2 eq] / total | 548 kg |
