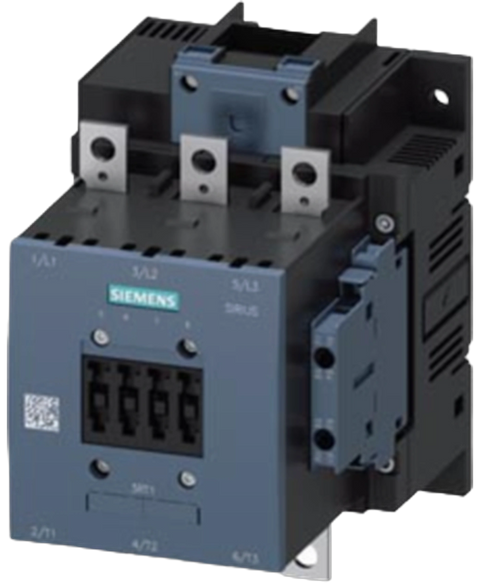

Siemens 3RT1054-6AV36 Contactor, S6, 115A, 380-420VUC, 3-Pole

This Siemens 3RT1054-6AV36 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26842614851.

Brand New - 12 Months Warranty
$1,009.61 (inc. GST)
In Stock
product brand name SIRIUS
product designation Power contactor
product type designation 3RT1
size of contactor S6
function module for communication No
auxiliary switch Yes
at AC in hot operating state 21 W
at AC in hot operating state per pole 7 W
without load current share typical 5.2 W
type of calculation of power loss depending on pole quadratic
of main circuit with degree of pollution 3 rated value 1 000 V
of auxiliary circuit with degree of pollution 3 rated value 500 V
of main circuit rated value 8 kV
of auxiliary circuit rated value 6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 690 V
at AC 8,5g / 5 ms, 4,2g / 10 ms13,4g / 5 ms, 6,5g / 10 ms2 000 1/h20 ... 95 ms40 ... 60 ms
at DC 8,5g / 5 ms, 4,2g / 10 ms13,4g / 5 ms, 6,5g / 10 ms2 000 1/h20 ... 95 ms40 ... 60 ms
of contactor typical 10 000 000
of the contactor with added electronically optimized auxiliary switch block typical 5 000 000
of the contactor with added auxiliary switch block typical 10 000 000
reference code according to IEC 81346-2 Q
Substance Prohibitance (Date) 05/01/2012
SVHC substance name Lead - 7439-92-1
Net Weight 3.259 kg
installation altitude at height above sea level maximum 2 000 m
during operation -25 ... +60 °C
during storage -55 ... +80 °C
relative humidity minimum 10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum 95 %
number of poles for main current circuit 3
number of NO contacts for main contacts 3
number of NC contacts for main contacts 0
at AC-3 rated value maximum 1 000 V
at AC-3e rated value maximum 1 000 V
at AC-1 at 400 V at ambient temperature 40 °C rated value 160 A
— up to 690 V at ambient temperature 40 °C rated value 160 A
— up to 690 V at ambient temperature 60 °C rated value 140 A
— up to 1000 V at ambient temperature 40 °C rated value 80 A
— up to 1000 V at ambient temperature 60 °C rated value 80 A
— at 400 V rated value 115 A55 kW
— at 500 V rated value 115 A75 kW
— at 690 V rated value 115 A110 kW
— at 1000 V rated value 53 A75 kW
at AC-4 at 400 V rated value 97 A
at AC-5a up to 690 V rated value 140 A
at AC-5b up to 400 V rated value 95 A
— up to 230 V for current peak value n=20 rated value 115 A
— up to 400 V for current peak value n=20 rated value 115 A
— up to 500 V for current peak value n=20 rated value 115 A
— up to 690 V for current peak value n=20 rated value 115 A
— up to 1000 V for current peak value n=20 rated value 53 A
— up to 230 V for current peak value n=30 rated value 98 A
— up to 400 V for current peak value n=30 rated value 98 A
— up to 500 V for current peak value n=30 rated value 98 A
— up to 690 V for current peak value n=30 rated value 98 A
— up to 1000 V for current peak value n=30 rated value 53 A
minimum cross-section in main circuit at maximum AC-1 rated value 70 mm²
at 400 V rated value 54 A29 kW3 A
at 690 V rated value 48 A48 kW1 A
— at 24 V rated value 160 A
— at 60 V rated value 160 A7.5 A
— at 110 V rated value 18 A160 A
— at 220 V rated value 3.4 A20 A160 A0.6 A2.5 A
— at 440 V rated value 0.8 A3.2 A11.5 A0.17 A0.65 A1.4 A
— at 600 V rated value 0.5 A1.6 A4 A0.12 A0.37 A0.75 A
— at 230 V rated value 37 kW25 hp
up to 230 V for current peak value n=20 rated value 40 kVA
up to 400 V for current peak value n=20 rated value 80 kVA
up to 500 V for current peak value n=20 rated value 100 kVA
up to 690 V for current peak value n=20 rated value 130 kVA
up to 1000 V for current peak value n=20 rated value 90 kVA
up to 230 V for current peak value n=30 rated value 30 kVA
up to 400 V for current peak value n=30 rated value 60 kVA
up to 500 V for current peak value n=30 rated value 80 kVA
up to 690 V for current peak value n=30 rated value 110 kVA
up to 1000 V for current peak value n=30 rated value 90 kVA
limited to 1 s switching at zero current maximum 2 565 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum 1 654 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum 1 170 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum 729 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum 572 A; Use minimum cross-section acc. to AC-1 rated value
at AC-1 maximum 800 1/h
at AC-2 maximum 400 1/h
at AC-3 maximum 1 000 1/h
— maximum 1 000 1/h
at AC-4 maximum 130 1/h
type of voltage of the control supply voltage AC/DC
at 50 Hz rated value 380 ... 420 V
at 60 Hz rated value 380 ... 420 V
control supply voltage at DC rated value 380 ... 420 V
initial value 0.8
full-scale value 1.1
at 50 Hz 0.8 ... 1.1300 VA0.90.8
at 60 Hz 0.8 ... 1.1300 VA0.90.8
design of the surge suppressor with varistor
— at 50 Hz 250 VA300 VA4.8 VA5.8 VA
— at 60 Hz 250 VA300 VA4.8 VA5.8 VA
at minimum rated control supply voltage at DC 4.3 VA
at maximum rated control supply voltage at DC 5.2 VA
closing power of magnet coil at DC 360 W
holding power of magnet coil at DC 5.2 W
arcing time 10 ... 15 ms
control version of the switch operating mechanism Standard A1 - A2
number of NC contacts for auxiliary contacts instantaneous contact 2
number of NO contacts for auxiliary contacts instantaneous contact 2
operational current at AC-12 maximum 10 A
at 230 V rated value 6 A
at 500 V rated value 2 A
at 24 V rated value 10 A
at 48 V rated value 6 A2 A
at 60 V rated value 6 A2 A
at 110 V rated value 3 A1 A
at 125 V rated value 2 A0.9 A
at 220 V rated value 1 A0.3 A
at 600 V rated value 0.15 A0.1 A125 A
contact reliability of auxiliary contacts 1 faulty switching per 100 million (17 V, 1 mA)
at 480 V rated value 124 A
— at 200/208 V rated value 40 hp
— at 220/230 V rated value 50 hp
— at 460/480 V rated value 100 hp
— at 575/600 V rated value 125 hp
contact rating of auxiliary contacts according to UL A600 / Q600
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V C characteristic: 10 A; 0.4 kA
— with type of coordination 1 required gG: 355 A (690 V, 100 kA)
— with type of coordination 2 required gG: 250 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 250 A (415 V, 50 kA)
for short-circuit protection of the auxiliary switch required gG: 10 A (500 V, 1 kA)
mounting position with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
fastening method side-by-side mounting Yes
fastening method screw fixing
height 172 mm
width 120 mm
depth 170 mm
— forwards 20 mm
— upwards 10 mm
— downwards 10 mm
— at the side 0 mm10 mm
for main current circuit Connection bar
for auxiliary and control circuit screw-type terminals
at contactor for auxiliary contacts Screw-type terminals
of magnet coil Screw-type terminals
width of connection bar 17 mm
thickness of connection bar 3 mm
diameter of holes 9 mm
number of holes 1
for AWG cables for main contacts 4 ... 250 kcmil
stranded 25 ... 120 mm²
solid or stranded 0.5 ... 4 mm²
finely stranded with core end processing 0.5 ... 2.5 mm²
— solid 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
— solid or stranded 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
— finely stranded with core end processing 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for AWG cables for auxiliary contacts 2x (20 ... 16), 2x (18 ... 14), 1x 12
AWG number as coded connectable conductor cross section for auxiliary contacts 18 ... 14
mirror contact according to IEC 60947-4-1 Yes
positively driven operation according to IEC 60947-5-1 No
suitable for safety function Yes
suitability for use safety-related switching OFF Yes
service life maximum 20 a
test wear-related service life necessary Yes
with low demand rate according to SN 31920 40 %
with high demand rate according to SN 31920 73 %
B10 value with high demand rate according to SN 31920 1 000 000
failure rate [FIT] with low demand rate according to SN 31920 100 FIT
device type according to ISO 13849-1 3
overdimensioning according to ISO 13849-2 necessary Yes
safety device type according to IEC 61508-2 Type A
protection class IP on the front according to IEC 60529 IP00; IP20 with box terminal/cover
touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front with box terminal/cover
global warming potential [CO2 eq] / during manufacturing 17 kg
global warming potential [CO2 eq] / during sales 0.901 kg
global warming potential [CO2 eq] / during operation 363 kg
global warming potential [CO2 eq] / after end of life -2.28 kg
global warming potential [CO2 eq] / total 379 kg
