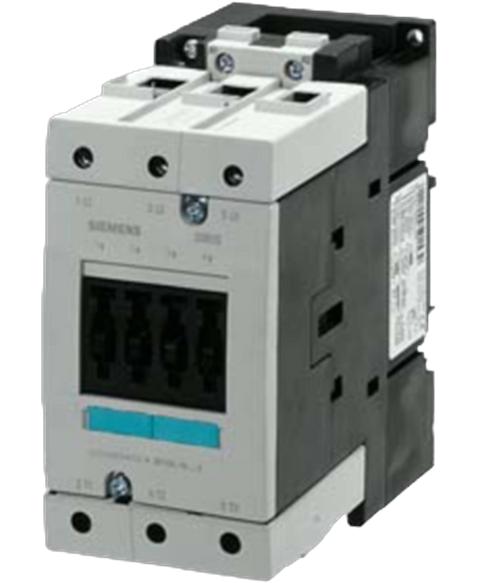

Siemens 3RT1044-1AK60
The Siemens 3RT1044-1AK60 functions as a robust power contactor with significant current-carrying capabilities. Designed with an AC-3 contactor type, it can handle loads up to 65 A and maintain a rated power of 30 kW at a voltage of 400 V in 3-phase applications.
This Siemens 3RT1044-1AK60 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26907715831.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RT1044-1AK60 |
| UPC | 754554411248 |
| Weight | 1.69 lbs (0.77 kg) |
| Series | Contactors |
| Name | Power Contactor |
| Contactor Type | AC-3 |
| Rated Current | 65 A |
| Rated Power | 30 kW at 400 V (3-Phase) |
| Rated Voltage | 110/120V AC |
| Number of Poles | 3-pole |
| Contactor Size | Size S3 |
| Terminal Type | Screw terminal |
| Coil Consumption | 7.5 VA |
| Mechanical Durability | 10 million operating cycles |
| Temperature Range | -25°C to +55°C |
| Shock Resistance | Up to 15g |
| Auxiliary Contact Configuration | 1 NO (Normally Open), 1 NC (Normally Closed) |
| Contact Material | Silver alloy |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Brand | Siemens |
