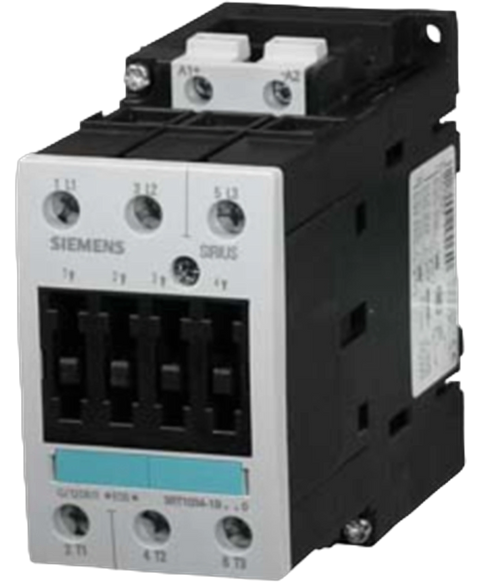

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RT10361BB40
Power contactor, AC-3 50 A, 22 kW , 400 V 24 V DC, 3-pole, Size S2, screw terminal
This Siemens 3RT10361BB40 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27088393673.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$298.19
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | power contactor |
| size of contactor | S2 |
| insulation voltage rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| on the front | IP20 |
| of the terminal | IP00 |
| at DC | 10g / 5 ms, 5g / 10 ms15g / 5 ms, 8g / 10 ms1 500 1/h60 ... 100 ms20 ... 25 ms |
| of contactor typical | 10 000 000 |
| of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 05/01/2012 |
| Weight | 1.426 kg |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| at AC-1 at 400 V at ambient temperature 40 °C rated value | 60 A |
| — up to 690 V at ambient temperature 40 °C rated value | 60 A |
| — up to 690 V at ambient temperature 60 °C rated value | 55 A |
| — at 400 V rated value | 50 A38 kW22 kW |
| — at 690 V rated value | 24 A66 kW22 kW |
| at AC-4 at 400 V rated value | 41 A |
| at 60 °C minimum permissible | 16 mm² |
| at 40 °C minimum permissible | 16 mm² |
| at 400 V rated value | 24 A12.6 kW3 A |
| at 690 V rated value | 12.6 A11.4 kW |
| — at 230 V at 60 °C rated value | 22 kW |
| — at 690 V at 60 °C rated value | 66 kW |
| at AC-2 at 400 V rated value | 22 kW |
| — at 230 V rated value | 15 kW |
| — at 500 V rated value | 30 kW |
| thermal short-time current limited to 10 s | 400 A |
| at AC-1 maximum | 1 000 1/h |
| at AC-2 maximum | 400 1/h |
| at AC-3 maximum | 800 1/h |
| at AC-4 maximum | 300 1/h |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 24 V |
| initial value | 0.8 |
| full-scale value | 1.1 |
| closing power of magnet coil at DC | 13.3 W |
| holding power of magnet coil at DC | 13.3 W |
| arcing time | 10 ... 15 ms |
| number of NC contacts for auxiliary contacts instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts instantaneous contact | 0 |
| operational current at AC-12 maximum | 10 A |
| at 230 V rated value | 6 A |
| at 60 V rated value | 6 A2 A |
| at 110 V rated value | 3 A1 A |
| at 220 V rated value | 1 A0.3 A |
| at 24 V rated value | 10 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| — with type of coordination 1 required | fuse gL/gG: 160 A |
| — with type of assignment 2 required | fuse gL/gG: 80 A |
| for short-circuit protection of the auxiliary switch required | fuse gL/gG: 10 A |
| fastening method side-by-side mounting | Yes |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| height | 112 mm |
| width | 55 mm |
| depth | 130 mm |
| required spacing for grounded parts at the side | 6 mm |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| solid | 2x (0.75 ... 16 mm²) |
| stranded | 2x (0.75 ... 25 mm²) |
| solid or stranded | 2x (0.75 ... 16 mm²) |
| finely stranded with core end processing | 2x (0.75 ... 16 mm²) |
| finely stranded without core end processing | 2x (0.75 ... 16 mm²) |
| — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 1x 12 |
