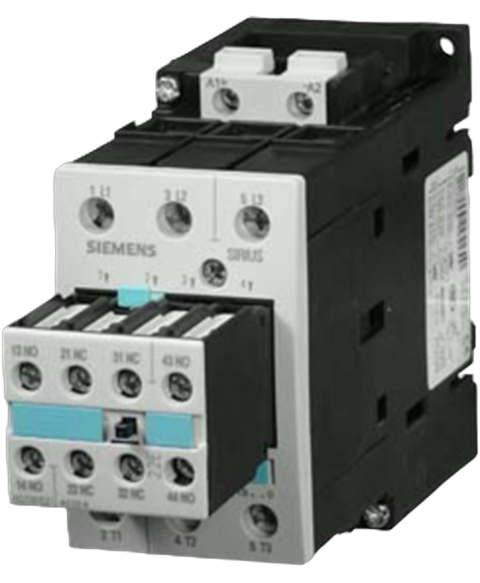

Siemens 3RT1035-1BB44
The Siemens 3RT1035-1BB44 power contactor module is engineered for industrial applications. Capable of handling an IEC power rating of 18.5 kW and a UL power rating of 25 HP, this component supports a current rating of 40 A with a voltage rating of 400 V AC.
This Siemens 3RT1035-1BB44 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801718481.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RT1035-1BB44 |
| UPC | 662643524581 |
| Weight | 3.25 lbs (1.47 kg) |
| Name of Module | Power Contactor |
| Power Rating (IEC) | 18.5 kW |
| Power Rating (UL) | 25 HP |
| Current Rating | 40 A |
| Voltage Rating | 400 V AC |
| Control Voltage | 24 V DC |
| Number of Poles | 3-pole |
| Contact Configuration | 2 NO and 2 NC |
| Enclosure Type | IP20 |
| Terminal Type | Screw terminal |
| Frame Size | S2 |
| Brand | Siemens |
