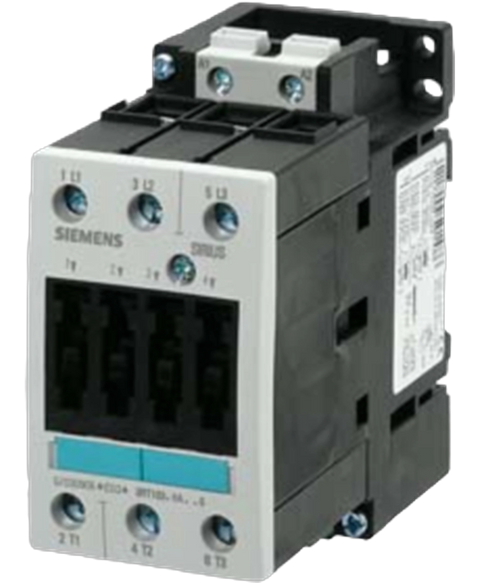

Siemens 3RT10341AP00
Power contactor, AC-3 32 A, 15 kW , 400 V 230 V AC, 50 Hz, 3-pole, Size S2, screw terminal
This Siemens 3RT10341AP00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27088342369.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 32 A |
| Depth | 115 mm |
| Height | 112 mm |
| Length | 112 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Mount | DIN Rail |
| Number of Pins | 3 |
| Number of Poles | 3 |
| Power Rating | 15 kW |
| Resistance | 3 Ω |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 3P |
| Width | 55 mm |
