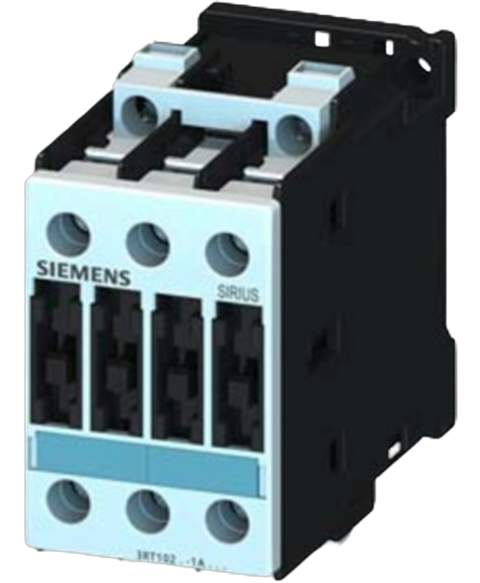

Siemens 3RT10241AP00
Power contactor, AC-3 12 A, 5.5 kW , 400 V 230 V AC, 50 Hz 3-pole, Size S0 Screw terminal
This Siemens 3RT10241AP00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27088248407.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Power | 3.3 W |
| Coil Voltage (AC) | 230 V |
| Contact Current Rating | 12 A |
| Depth | 91 mm |
| Height | 85 mm |
| Length | 85 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Mount | DIN Rail |
| Number of Pins | 3 |
| Number of Poles | 3 |
| Operating Supply Voltage | 230 V |
| Power Rating | 5.5 kW |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Voltage | 690 V |
| Termination | Screw |
| Width | 45 mm |
