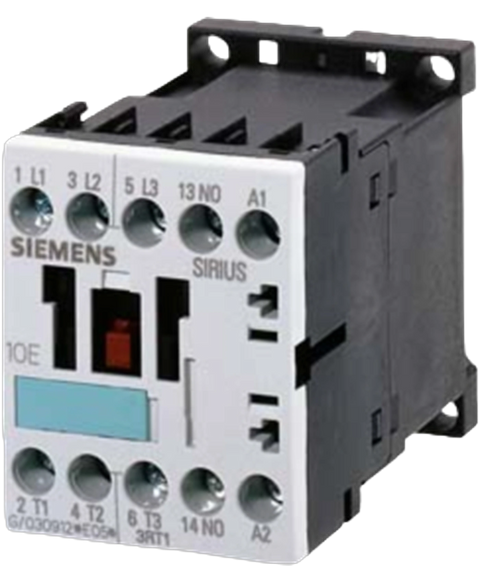

Siemens 3RT1017-1BB41
Siemens' 3RT1017-1BB41 relay from the SIRIUS series is a durable electrical component designed for reliable operation. This model features three poles with an auxiliary contact designed to be normally open (NO), offering essential connectivity in various applications.
This Siemens 3RT1017-1BB41 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801718174.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RT1017-1BB41 |
| UPC | 754554410753 |
| Weight | 0.56 lbs (0.26 kg) |
| Number of Poles | 3 Poles |
| Auxiliary Contacts | 1 Normally Open (NO) |
| Coil Voltage | 24 V DC |
| Rated Operational Current (AC-3) | 12 A |
| Rated Operational Power (AC-3) | 5.5 kW |
| Rated Operational Voltage | 400 V |
| Rated Operational Voltage Range | 0.85 to 1.1 times the rated voltage |
| Rated Insulation Voltage | 690 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Short-Circuit Withstand Strength | 10 kA |
| Mechanical Service Life | 10 million operating cycles |
| Electrical Service Life | 1 million operating cycles |
| Mounting Type | Screw Terminal |
| Brand | Siemens |
