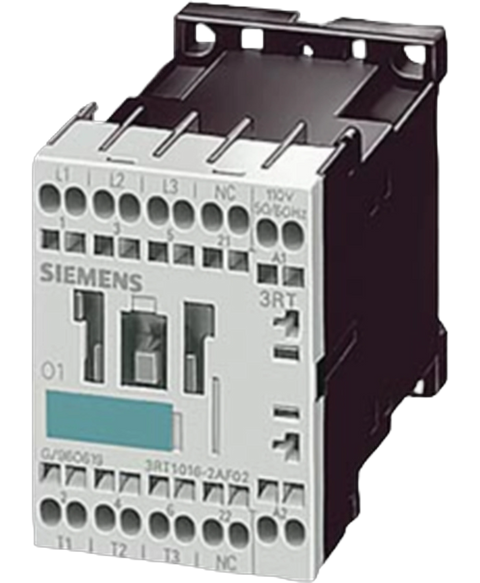

Siemens 3RT10162BB41
Power contactor, AC-3 9 A, 4 kW , 400 V 1 NO, 24 V DC 3-pole, Size S00 Spring-type terminal !!! Phased-out product !!! Successor is SIRIUS 3RT2 Preferred successor type is >>3RT2016-2BB41<<
This Siemens 3RT10162BB41 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27088231914.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Power | 26.5 W |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 9 A |
| Contact Voltage Rating (DC) | 24 V |
| Depth | 73 mm |
| Length | 60 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Number of Poles | 3 |
| Power Rating | 4 kW |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Voltage | 690 V |
| Termination | Cage Clamp |
| Throw Configuration | 3P |
| Width | 45 mm |
