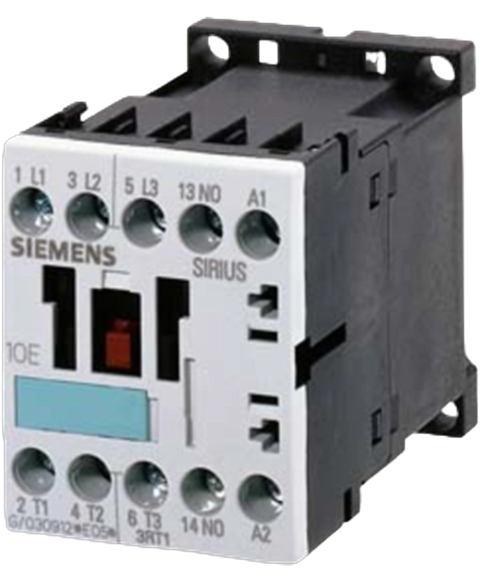

Siemens 3RT10161AF01
Power contactor, AC-3 9 A, 4 kW , 400 V 1 NO, 110 V AC, 50,60 Hz 3-pole, Size S00 Screw terminal !!! Phased-out product !!! Successor is SIRIUS 3RT2 Preferred successor type is >>3RT2016-1AF01<< Notes Sucessor:The successor is 3RT2016-1AF01
This Siemens 3RT10161AF01 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL27088212559.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 9 A |
| Depth | 72 mm |
| Length | 57.5 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Number of Poles | 3 |
| Power Rating | 4 kW |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 3P |
| Width | 45 mm |
